25-2281

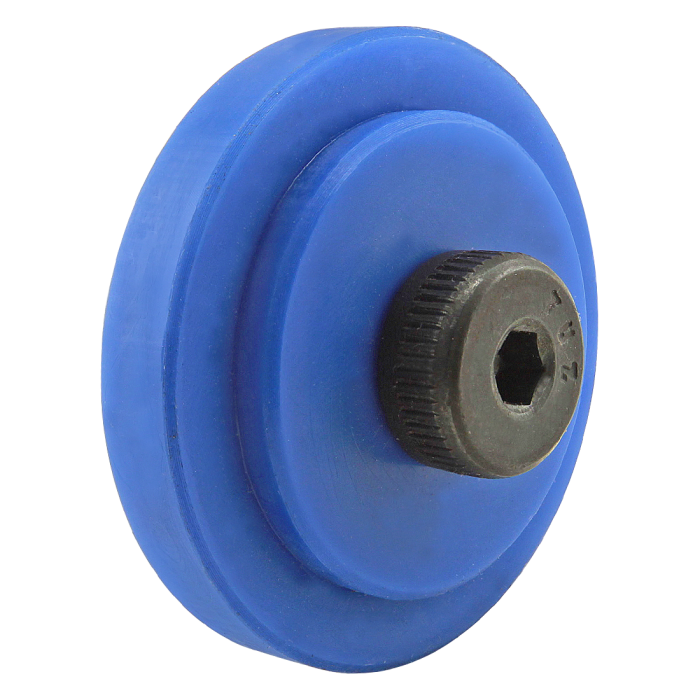

25 to 25 Series Roller Wheel with Permanent Lubricated Bushing
25 to 25 Series Roller Wheel with Permanent Lubricated Bushing
The roller wheel with permanent lubricated bushing is ideal for guided linear motion and has a bronze bushing that requires no additional lubrication. The roller wheel mounts to the profile end or T-slot and includes the mounting hardware.
| ESD Safe | No |
| Series | 25 Series to 25 Series |
| Material | Nylon PA Glass Fiber Reinforced |
| Grade | K222-D |
| Color | Blue |
| Process | Injection Molded |
| A | 37.50mm |
| B | 28.00mm |
| C | 4.00mm |
| D | 28.41mm |
| E | 11.60mm |
| F | 6.10mm |
| G | 2.74mm |
| H | M6 X 1.0 |
| J | 8.97mm |
| Weight | 0.070000 |
The roller wheel with permanent lubricated bushing is ideal for guided linear motion and has a bronze bushing that requires no additional lubrication. The roller wheel mounts to the profile end or T-slot and includes the mounting hardware.
Product Specs
- Product Details
-
ESD Safe No Series 25 Series to 25 Series Material Nylon PA Glass Fiber Reinforced Grade K222-D Color Blue Process Injection Molded A 37.50mm B 28.00mm C 4.00mm D 28.41mm E 11.60mm F 6.10mm G 2.74mm H M6 X 1.0 J 8.97mm Weight 0.070000
-
- Description
The roller wheel with permanent lubricated bushing is ideal for guided linear motion and has a bronze bushing that requires no additional lubrication. The roller wheel mounts to the profile end or T-slot and includes the mounting hardware.
-
