25-2750
25 Series Dual Roller Wheel Bracket
25 Series Dual Roller Wheel Bracket

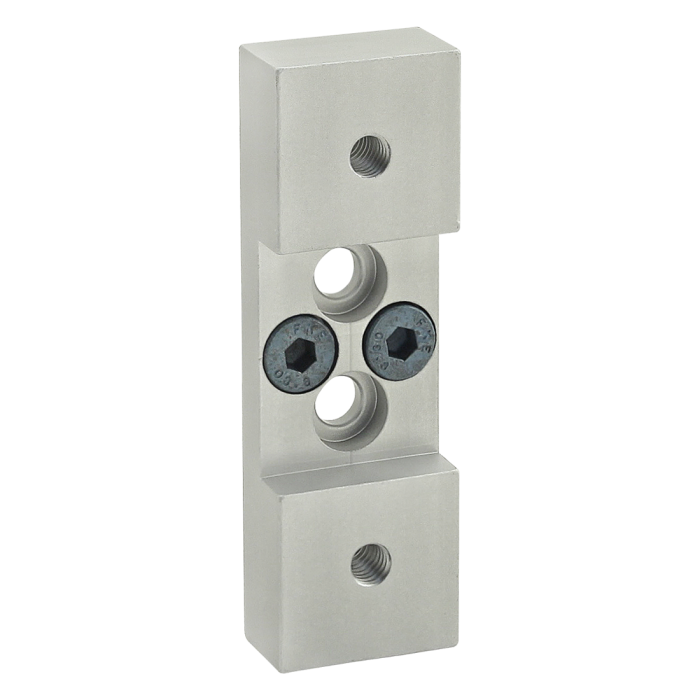

The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. It includes the hardware for mounting the bracket to the T-slot.
| ESD Safe | No |
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | 25.40mm |
| B | 12.70mm |
| C | 12.70mm |
| D | 47.50mm |
| E | 17.00mm |
| F | 5.81mm |
| G | 13.81mm |
| H | M6 X 1.0 |
| J | M6 X 1.0 |
| K | 6.40mm |
| L | 20.42mm |
| M | 78.00mm |
| N | 23.44mm |
| P | 31.10mm |
| Q | 12.70mm |
| Weight | 0.120800 |
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. It includes the hardware for mounting the bracket to the T-slot.
Product Specs
- Product Details
-
ESD Safe No Series 25 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Clear Process Milled A 25.40mm B 12.70mm C 12.70mm D 47.50mm E 17.00mm F 5.81mm G 13.81mm H M6 X 1.0 J M6 X 1.0 K 6.40mm L 20.42mm M 78.00mm N 23.44mm P 31.10mm Q 12.70mm Weight 0.120800
-
- Description
The dual roller wheel bracket is made of anodized aluminum and mounts to a T-slot profile. It is commonly used with roller wheels to form assemblies that create door frames, linear glides, and track systems. It includes the hardware for mounting the bracket to the T-slot.
-
