Product Specs

• Product Details
  •

    Series	25 Series
    Material	Aluminum
    Grade	6105-T5
    Finish	Anodize
    Color	Clear
    Process	Milled
    A	60.00mm
    B	20.00mm
    C	50.00mm
    D	12.50mm
    E	25.00mm
    F	6.30mm
    G	36.00mm
    H	12.50mm
    J	25.00mm
    K	10.49mm
    L	8.00mm
    M	22.00mm
    N	6.00mm
    P	140.00mm
    Q	56.00mm
    Weight	0.370000

• Description

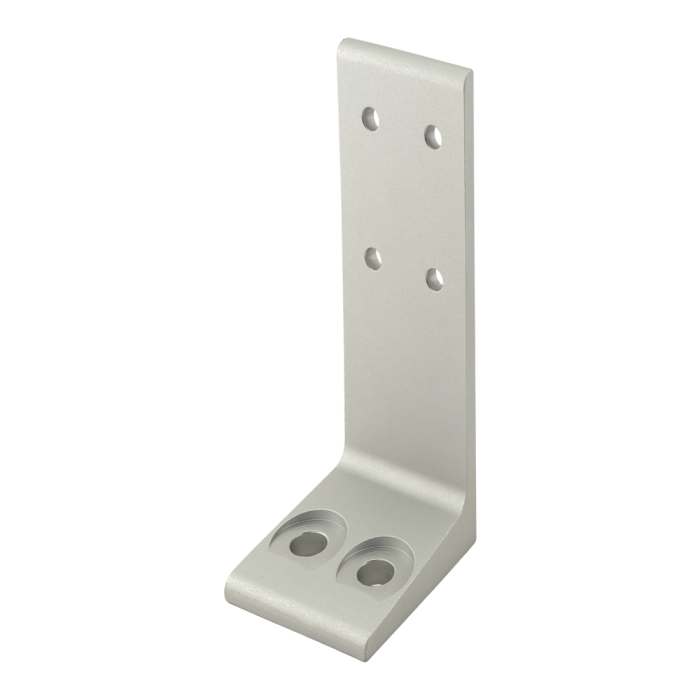

  • The economy floor mount base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts directly to the T-slot to allow vertical adjustments and is designed with countersunk holes to incorporate floor anchors.
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description	Select Qty / Add To Cart
    	75-3412	2 To 6	Bolt Assembly: M6 x 12.00mm Blue SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
