25-2071
25 Series 4 Hole - Detent Hinge
25 Series 4 Hole - Detent Hinge

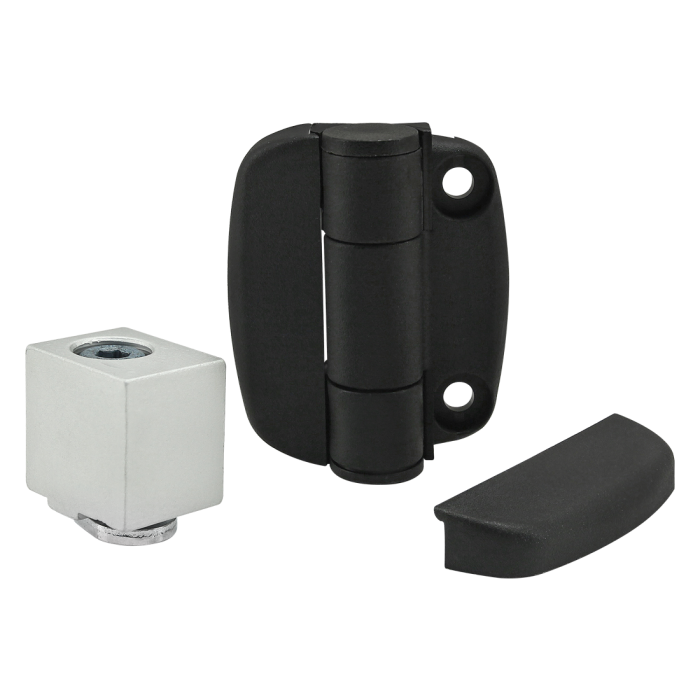

The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
| ESD Safe | No |
| Series | 25 Series |
| Material | Acetal with Stainless Steel Ball/Spring Detent & Aluminum Panel Block |
| Process | Injection Molded and Extruded |
| Alloy | 6063-T6 |
| Finish | Plastic & Anodize |
| Color | Black |
| A | 25.40mm |
| B | 45.80mm |
| C | 31.80mm |
| D | 20.10mm |
| E | 12.50mm |
| F | 4.50mm |
| G | 7.20mm |
| H | 6.70mm |
| J | 21.30mm |
| K | 49.00mm |
| Weight | 0.036000 |
The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
Per Leaf Mount to T-slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 75-3537 | 2 | Bolt Assembly: M4 x 10.00mm Black BHSCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
Per Leaf Mount to Panel LTE .250" / 6mm
| Series | Part Number | Qty | Description |
|---|---|---|---|
| 75-3538 | 2 | Bolt Assembly: M4 x 12.00mm Black BHSCS with Washer and Hex Nut - Black Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 25 Series Material Acetal with Stainless Steel Ball/Spring Detent & Aluminum Panel Block Process Injection Molded and Extruded Alloy 6063-T6 Finish Plastic & Anodize Color Black A 25.40mm B 45.80mm C 31.80mm D 20.10mm E 12.50mm F 4.50mm G 7.20mm H 6.70mm J 21.30mm K 49.00mm Weight 0.036000
-
- Description
The 4 hole - detent hinge is commonly used to connect plastic panels and doors to T-slot profiles. It holds doors open at 120 or 170 degrees and is especially useful in horizontal-lifting applications, as it provides hands-free access. It includes snap-on covers that hide the hardware to mount to a panel or profile as well as a detent hinge stopper and its mounting hardware. Important Caution: This hinge is not suitable for connecting multiple T-slot profiles.
-
Sugg. Hardware
Per Leaf Mount to T-slot
Series Part Number Qty Description 75-3537 2 Bolt Assembly: M4 x 10.00mm Black BHSCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc Per Leaf Mount to Panel LTE .250" / 6mm
Series Part Number Qty Description 75-3538 2 Bolt Assembly: M4 x 12.00mm Black BHSCS with Washer and Hex Nut - Black Zinc
-
