2407

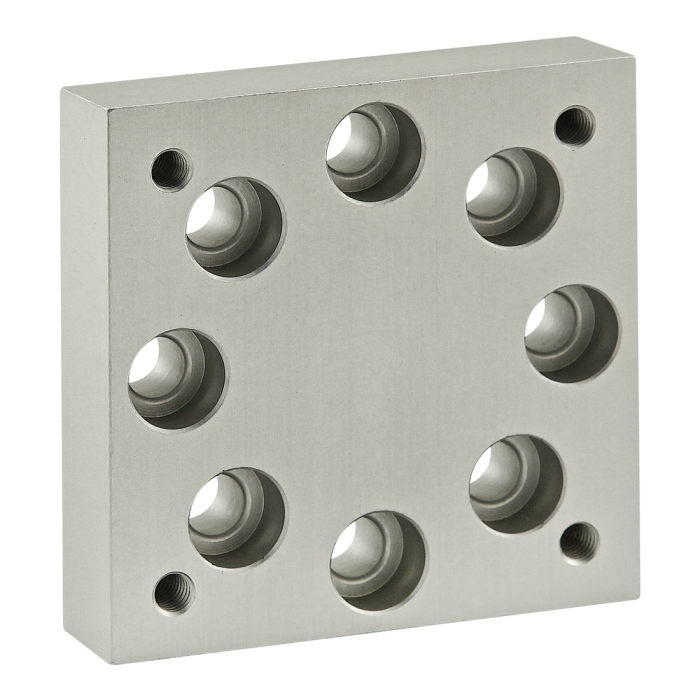

15 Series Leveling Caster Base Plate
15 Series Leveling Caster Base Plate
The leveling caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount heavy-duty casters for an added layer of strength and durability. It requires a tap to mount to the profile end.
....................................................................................................................................................................................................................................................
Total Price
$20.85| Series | 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Process | Milled |
| Finish | Anodize |
| Color | Clear |
| A | 2.122" |
| B | .439" |
| C | 3.000" |
| D | .358" |
| E | 2.284" |
| F | 1.500" |
| G | 1/4-20 |
| H | 5/16 SHCS |
| J | .750" |
| K | .750" |
| L | 3.000" |
| Weight | 0.567000 |
The leveling caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount heavy-duty casters for an added layer of strength and durability. It requires a tap to mount to the profile end.
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3458 | 4 | Bolt Assembly: 5/16-18 x .875" Black SHCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc |
Mount to Profile End
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 3123 | 4 | 5/16-18 x 1.300" Socket Head Cap Screw (SHCS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 15 Series Material Aluminum Grade 6105-T5 Process Milled Finish Anodize Color Clear A 2.122" B .439" C 3.000" D .358" E 2.284" F 1.500" G 1/4-20 H 5/16 SHCS J .750" K .750" L 3.000" Weight 0.567000
-
- Description
The leveling caster base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts to a profile end or side and is commonly used to mount heavy-duty casters for an added layer of strength and durability. It requires a tap to mount to the profile end.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 3458 4 Bolt Assembly: 5/16-18 x .875" Black SHCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc Mount to Profile End
Series Part Number Qty Description Select Qty / Add To Cart 3123 4 5/16-18 x 1.300" Socket Head Cap Screw (SHCS)
