Product Specs

• Product Details
  •

    Series	10 Series
    Material	Aluminum
    Grade	6063-T6
    Finish	Anodize
    Color	Clear
    Process	Milled
    A	2.250"
    B	.750"
    C	3.000"
    D	.500"
    E	1.000"
    F	.257"
    G	1.312"
    H	.500"
    J	1.000"
    K	.390"
    L	.312"
    M	.875"
    N	.250"
    P	5.000"
    Q	2.00"
    Weight	0.545000

• Description

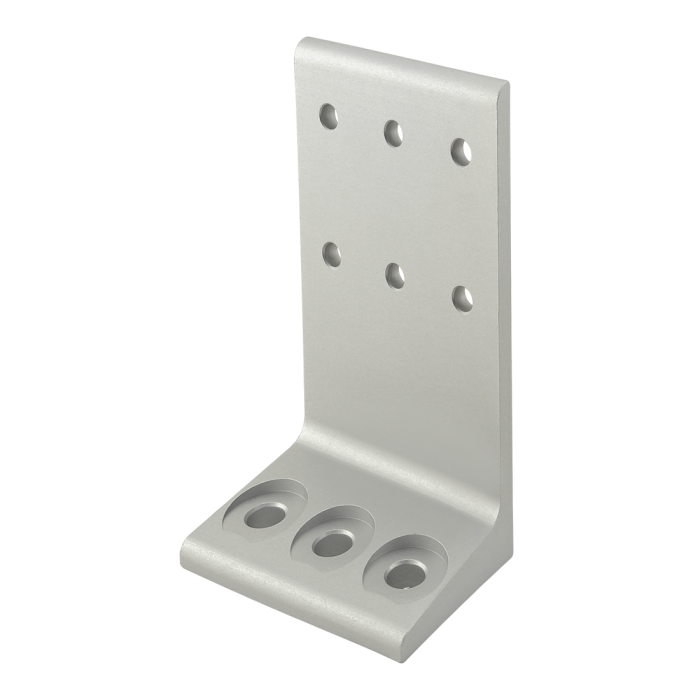

  • The economy floor mount base plate is made of anodized aluminum to withstand daily use and wear and tear. It bolts directly to the T-slot to allow vertical adjustments and is designed with countersunk holes to incorporate floor anchors.
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	3321	2 To 6	Bolt Assembly: 1/4-20 x .500" Black FBHSCS and Slide-In Economy T-Nut - Centered Thread - Black Zinc

• CAD Files
• CAD Files
  • CAD Download
