10, 15, 25, 30 & 40 Series Cup Holder - Closed Bottom

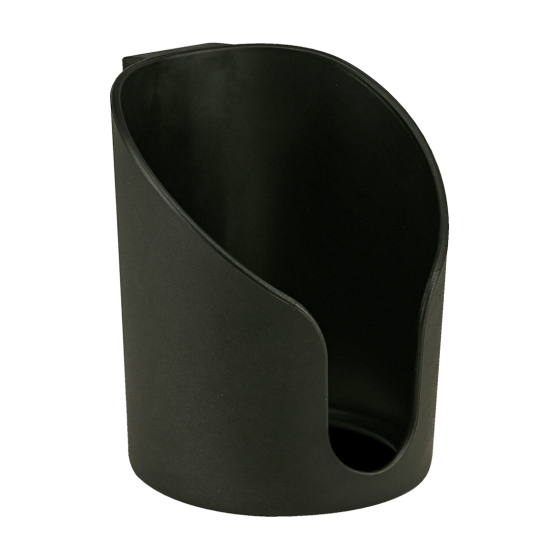

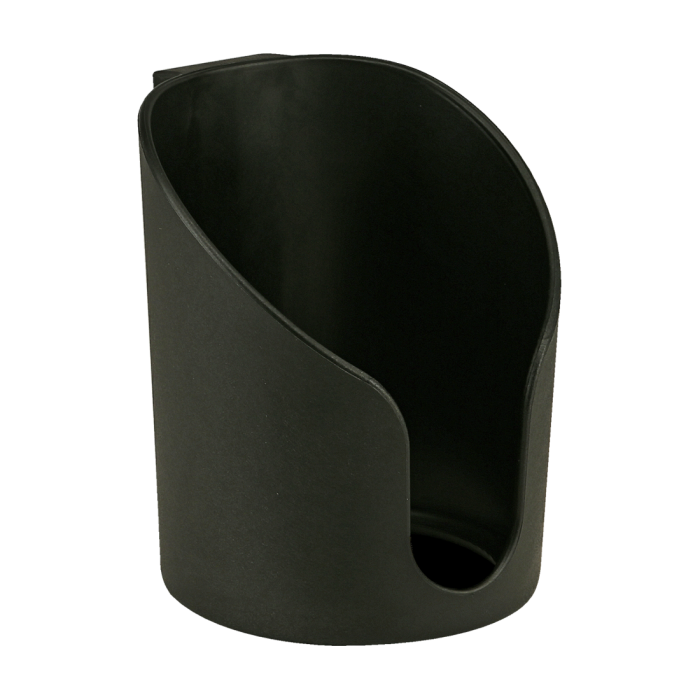

The cup holder – closed bottom easily mounts to a T-slot profile and holds bottles and cups. This item is commonly used in workstations, assembly cells, and carts.
The cup holder – closed bottom easily mounts to a T-slot profile and holds bottles and cups. This item is commonly used in workstations, assembly cells, and carts.
10 Series, 15 Series, 25 Series, 30 Series, 40 Series
Material
Nylon
Process
Molded
Color
Black
A
4.606"
B
3.874"
C
3.594"
D
.228"
E
4.449"
F
1.023"
G
2.756"
H
.315"
J
2.303"
K
4.045"
Weight
0.346000
The cup holder – closed bottom easily mounts to a T-slot profile and holds bottles and cups. This item is commonly used in workstations, assembly cells, and carts.
Mount to T-Slot
Series
Part Number
Qty
Description
11-5716
2
M5 x 16.00mm Flat Head Socket Cap Screw (FHSCS)
3875
2
M5 Roll-In T-Nut with Flex Handle
3844
2
M5 Roll-In T-Nut with Flex Handle
25-1956
2
M5 Roll-In T-Nut with Flex Handle
13115
2
30 Series M5 Standard Drop-in T-Nut
40-3913
2
M5 Roll-In T-Nut with Ball Spring
