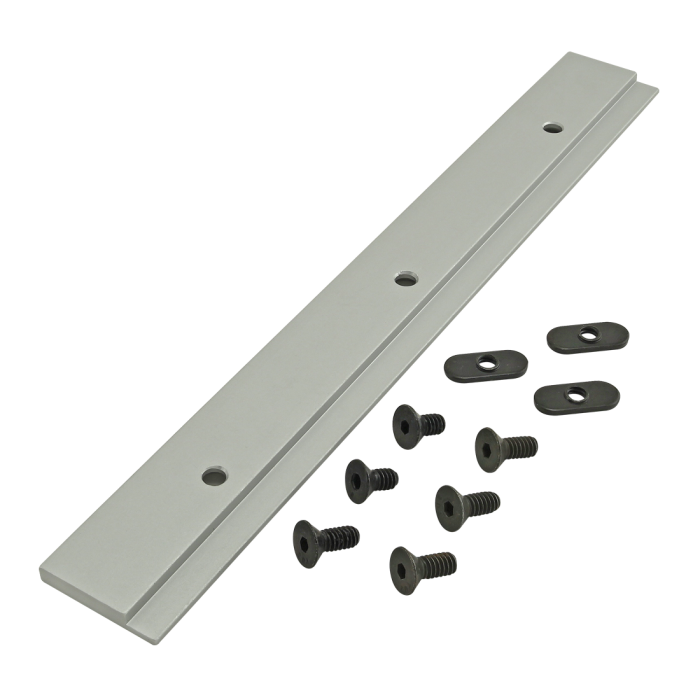

10 & 15 Series Storage Bin Hanger
10 & 15 Series Storage Bin Hanger
The storage bin hanger is made from aluminum and is used to mount a storage bin to an application. All mounting hardware is included.
10 & 15 Series Storage Bin Hanger
The storage bin hanger is made from aluminum and is used to mount a storage bin to an application. All mounting hardware is included.
Series | 10 Series, 15 Series |
Material | Aluminum |
Grade | 6105-T5 |
Finish | Anodize |
Color | Clear |
Process | Machined |
A | 1.500" |
B | .745" |
C | .375" |
D | 12.000" |
E | 4.000" |
F | 1/4-20 |
G | .250" |
H | .100" |
Weight | 0.444000 |
The storage bin hanger is made from aluminum and is used to mount a storage bin to an application. All mounting hardware is included.
Series | Part Number | Qty | Description | Select Qty / Add To Cart |
---|---|---|---|---|
![]() ![]() | 3400 | 3 | 1/4-20 x .500" Flat Head Socket Cap Screw (FHSCS) | |
![]() ![]() | 3405 | 3 | 1/4-20 x .625" Flat Head Socket Cap Screw (FHSCS) | |
![]() ![]() | 3382 | 3 | 1/4-20 Slide-in Economy T-Nut - Centered Thread |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Series | 10 Series, 15 Series |
Material | Aluminum |
Grade | 6105-T5 |
Finish | Anodize |
Color | Clear |
Process | Machined |
A | 1.500" |
B | .745" |
C | .375" |
D | 12.000" |
E | 4.000" |
F | 1/4-20 |
G | .250" |
H | .100" |
Weight | 0.444000 |
The storage bin hanger is made from aluminum and is used to mount a storage bin to an application. All mounting hardware is included.
Series | Part Number | Qty | Description | Select Qty / Add To Cart |
---|---|---|---|---|
![]() ![]() | 3400 | 3 | 1/4-20 x .500" Flat Head Socket Cap Screw (FHSCS) | |
![]() ![]() | 3405 | 3 | 1/4-20 x .625" Flat Head Socket Cap Screw (FHSCS) | |
![]() ![]() | 3382 | 3 | 1/4-20 Slide-in Economy T-Nut - Centered Thread |
