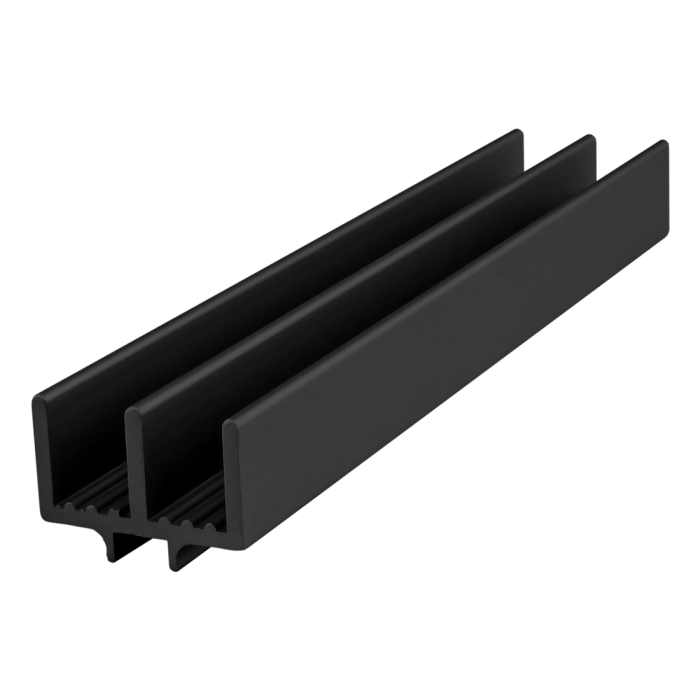

10 Series Lower Door Slide Track
10 Series Lower Door Slide Track
The lower door slide track snaps into a T-slot with no required hardware. This track is typically used with the upper door slide track to allow panels to be inserted after the frame is assembled. The lower slide track has a radius bearing surface that allows panels to slide easily. The lower door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
Price Per Inch
$0.69The lower door slide track snaps into a T-slot with no required hardware. This track is typically used with the upper door slide track to allow panels to be inserted after the frame is assembled. The lower slide track has a radius bearing surface that allows panels to slide easily. The lower door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
In stock
Total Price
................................................................................................................................Series | 10 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Process | Extruded |
Finish | Anodize |
Color | Black |
A | 0.92" |
B | .438" |
C | .281" |
D | .750" |
Length | per inch |
Weight | 0.013000 |
Max Length (inches) | 4724.409449 |
The lower door slide track snaps into a T-slot with no required hardware. This track is typically used with the upper door slide track to allow panels to be inserted after the frame is assembled. The lower slide track has a radius bearing surface that allows panels to slide easily. The lower door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6005A – T61 Process Extruded Finish Anodize Color Black A 0.92" B .438" C .281" D .750" Length per inch Weight 0.013000 Max Length (inches) 4724.409449
-
- Description
The lower door slide track snaps into a T-slot with no required hardware. This track is typically used with the upper door slide track to allow panels to be inserted after the frame is assembled. The lower slide track has a radius bearing surface that allows panels to slide easily. The lower door slide track is 120” (3.048M) and can be cut to length with a standard machining service.
