2211

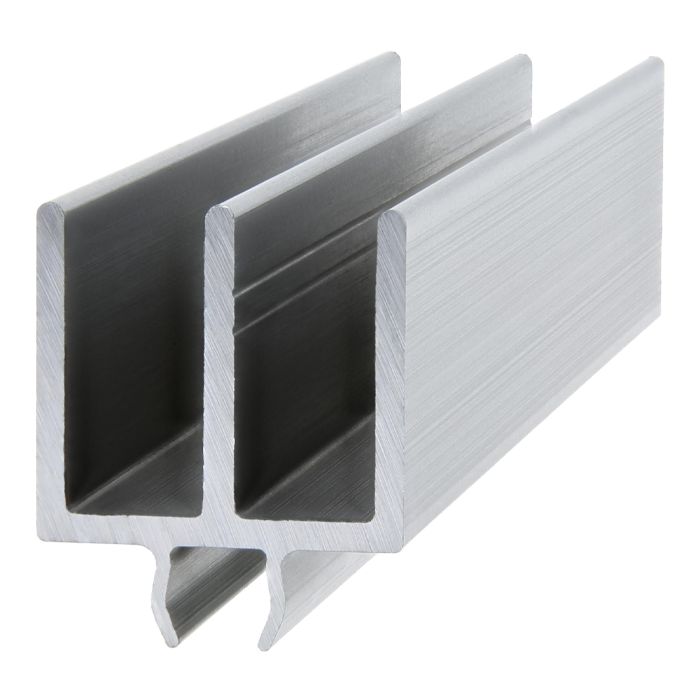

10 Series Upper Door Slide Track
10 Series Upper Door Slide Track
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M)) and can be cut to length with a standard machining service.
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M)) and can be cut to length with a standard machining service.
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Extruded |
| Finish | Anodize |
| Color | Clear |
| A | .062" |
| B | .688" |
| C | .281" |
| D | .750" |
| Length | per inch |
| Weight | 0.016000 |
| Max Length (inches) | 120.000000 |
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M)) and can be cut to length with a standard machining service.
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6063-T6 Process Extruded Finish Anodize Color Clear A .062" B .688" C .281" D .750" Length per inch Weight 0.016000 Max Length (inches) 120.000000
-
- Description
The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 120” (3.048M)) and can be cut to length with a standard machining service.
-
