()1010-S

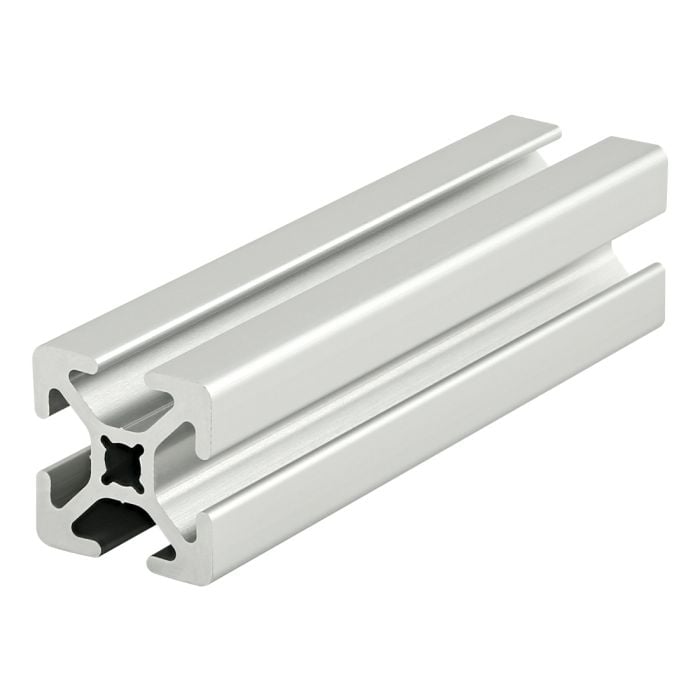

1.00" x 1.00" Smooth Surface T-Slotted Profile - Four Open T-Slots
1.00" x 1.00" Smooth Surface T-Slotted Profile - Four Open T-Slots
1010-S is a 1.00” x 1.00” fractional 10 series square T-slot profile with four open T-slots, one on each 1.00” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1010-S profile is compatible with all 10 series fasteners. The four open T-slots enable access from any direction and are useful for mounting accessories.
Price Per Inch
$0.371010-S is a 1.00” x 1.00” fractional 10 series square T-slot profile with four open T-slots, one on each 1.00” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1010-S profile is compatible with all 10 series fasteners. The four open T-slots enable access from any direction and are useful for mounting accessories.
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Single Hole End Tap
1/4-20 D x 1.125" ↧
Price: $2.79 - Single Hole End Tap
M6 x 1.00 D x 1.125" ↧
Price: $2.79
- .219" D accesshole
7051 | Price: $2.79
- 0° to 75° Mitercut
Price: $4.93
Counterbore
See here for details
In stock
Series | 10 Series |
Material | Aluminum |
Grade | 6105-T5 |
Finish | Anodize |
Color | Clear |
Drop Lock | 2° |
Moment of Inertia - IX | 0.0463”⁴ |
Moment of Inertia - IY | 0.0463”⁴ |
Surface Area | 0.437 Sq. in. |
Yield Strength | 35,000 psi |
Modulus of Elasticity | 10,200,000 Lbs / Sq. In. |
Weight lbs | 0.0424 per inch |
Weight | 0.042400 |

1010-S is a 1.00” x 1.00” fractional 10 series square T-slot profile with four open T-slots, one on each 1.00” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1010-S profile is compatible with all 10 series fasteners. The four open T-slots enable access from any direction and are useful for mounting accessories.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6105-T5 Finish Anodize Color Clear Drop Lock 2° Moment of Inertia - IX 0.0463”^4 Moment of Inertia - IY 0.0463”^4 Surface Area 0.437 Sq. in. Yield Strength 35,000 psi Modulus of Elasticity 10,200,000 Lbs / Sq. In. Weight lbs 0.0424 per inch Weight 0.042400
-
- Description
1010-S is a 1.00” x 1.00” fractional 10 series square T-slot profile with four open T-slots, one on each 1.00” face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1010-S profile is compatible with all 10 series fasteners. The four open T-slots enable access from any direction and are useful for mounting accessories.
