2152

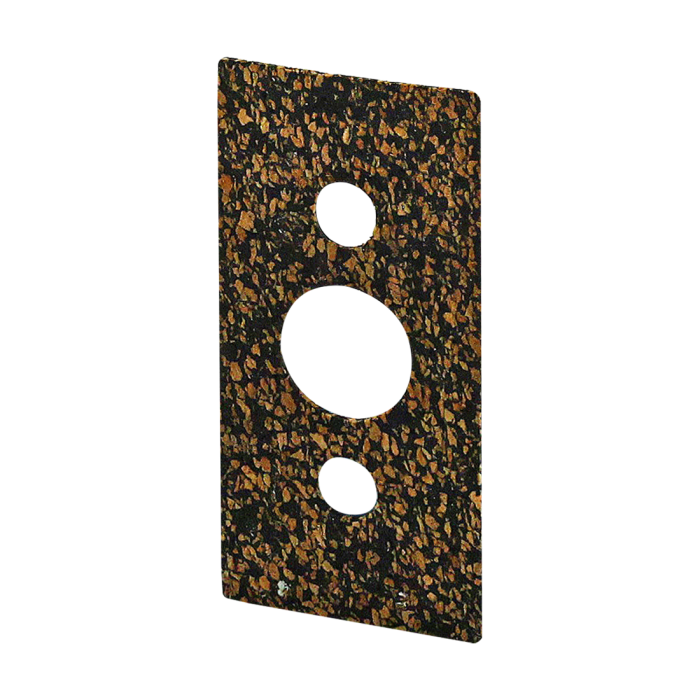

10 Series 3-Hole Gasket for Pressure Manifold
10 Series 3-Hole Gasket for Pressure Manifold
The 3-hole gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
| ESD Safe | No |
| Series | 10 Series |
| Material | velumoid |
| Color | Brown |
| A | 1.000" |
| B | .500" |
| C | 1.000" |
| D | .500" |
| E | 1.000" |
| F | .515" |
| G | .265" |
| H | .030" |
| J | 2.000" |
| Weight | 0.001000 |
The 3-hole gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
Product Specs
- Product Details
-
ESD Safe No Series 10 Series Material velumoid Color Brown A 1.000" B .500" C 1.000" D .500" E 1.000" F .515" G .265" H .030" J 2.000" Weight 0.001000
-
- Description
The 3-hole gasket for pressure manifold is made of a cork and synthetic rubber combination used to prevent leakage. It is used with manifold plates to completely seal a profile end or create a tight seal where a substance is released.
-
