10 Series 3-Hole Pressure Manifold Feed Plate
10 Series 3-Hole Pressure Manifold Feed Plate

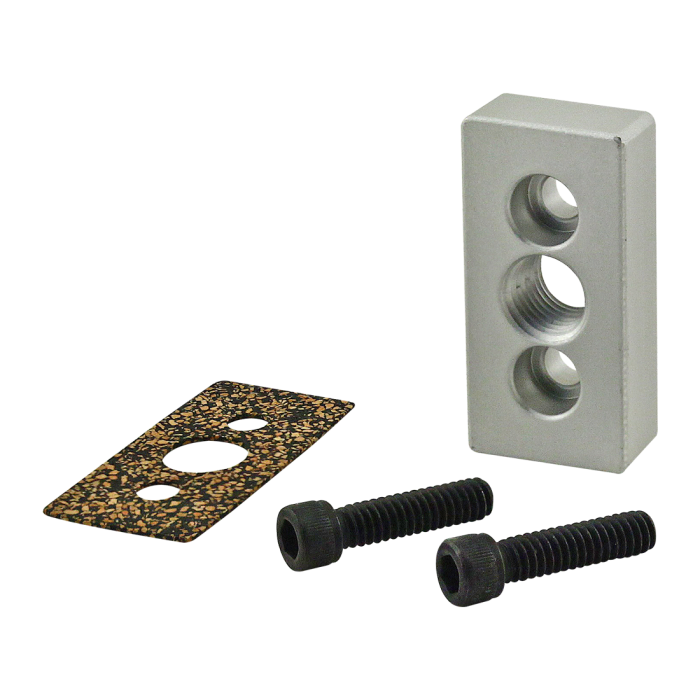

The 3-hold pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
The 3-hold pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
Total Price
................................................................................................................................Series | 10 Series |
Material | Aluminum |
Grade | 6005A – T61 |
Finish | Anodize |
Color | Clear |
Process | Milled |
A | 1.000" |
B | .500" |
C | 1.000" |
D | .500" |
E | 1.000" |
F (Thread) | 1/4" NPT |
G (Bolt Size) | 1/4 SHCS |
H | .490" |
J | 2.000" |
Weight | 0.112000 |
The 3-hold pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
Mount to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
3071 | 2 | 1/4-20 x 1.000" Socket Head Cap Screw (SHCS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6005A – T61 Finish Anodize Color Clear Process Milled A 1.000" B .500" C 1.000" D .500" E 1.000" F (Thread) 1/4" NPT G (Bolt Size) 1/4 SHCS H .490" J 2.000" Weight 0.112000
-
- Description
The 3-hold pressure manifold feed plate is commonly used when adding a pressurized substance to a T-slot profile. It has a tapped hole and mounts on the profile end to seal the connection where the pressurized substance is released. The suggested mounting hardware and gasket are included. The maximum allowable pressure is 150 psi (1034.21 kPa).
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 3071 2 1/4-20 x 1.000" Socket Head Cap Screw (SHCS)
