2121

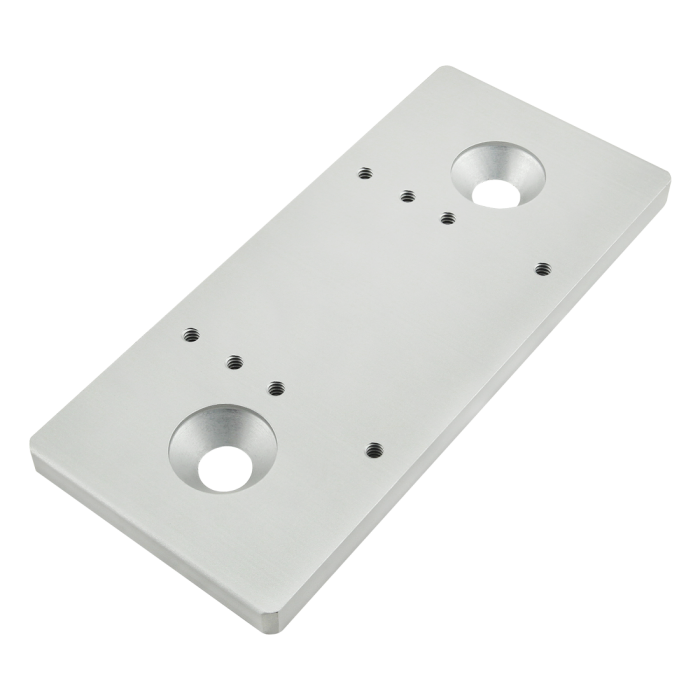

15 Series Grabber™ Door Catch Mounting Plate
15 Series Grabber™ Door Catch Mounting Plate
The Grabber™ door catch mounting plate is made of .250" 6063-T6 anodized aluminum and is used to mount the Grabber™ door catch to a T-slot or plastic panel.
| ESD Safe | No |
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | .250" |
| B | .780" |
| C | .345" |
| D | .375" |
| E | 4.500" |
| F | 1.312" |
| G | 1.875" |
| H | #6-32 |
| J | 5/16 FHSCS C-Sink |
| K | 1.000" |
| L | .750" |
| M | 3.000" |
| N | .250" |
| P | 2.000" |
| Weight | 0.202000 |
The Grabber™ door catch mounting plate is made of .250" 6063-T6 anodized aluminum and is used to mount the Grabber™ door catch to a T-slot or plastic panel.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3412 | 2 | Bolt Assembly: 5/16-18 x .625" Black FHSCS with Slide-In Economy T-Nut - Offset Thread - Black Zinc |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series 15 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Clear Process Milled A .250" B .780" C .345" D .375" E 4.500" F 1.312" G 1.875" H #6-32 J 5/16 FHSCS C-Sink K 1.000" L .750" M 3.000" N .250" P 2.000" Weight 0.202000
-
- Description
The Grabber™ door catch mounting plate is made of .250" 6063-T6 anodized aluminum and is used to mount the Grabber™ door catch to a T-slot or plastic panel.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 3412 2 Bolt Assembly: 5/16-18 x .625" Black FHSCS with Slide-In Economy T-Nut - Offset Thread - Black Zinc
-
