2021

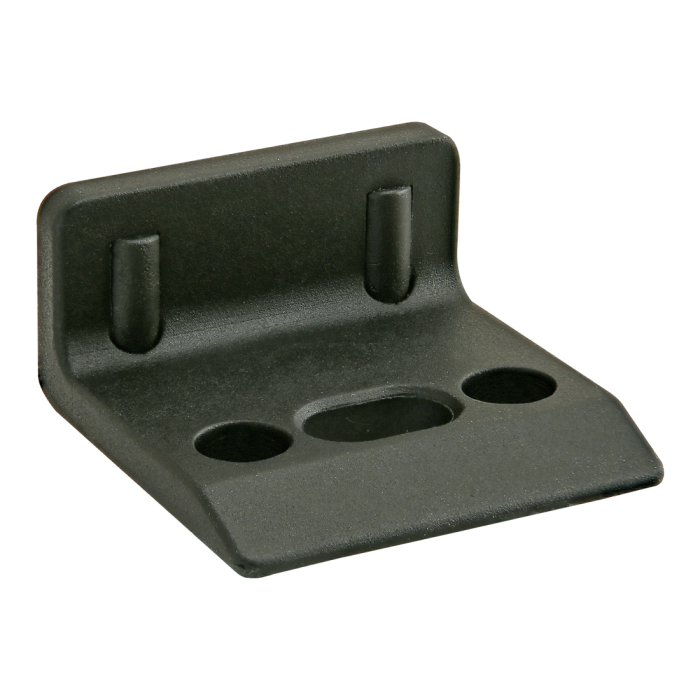

Nylon Rubber Door Stop
Nylon Rubber Door Stop
The nylon rubber door stop is a cost-effective option that prevents a door from swinging too far into the frame. It includes rubber bumpers for a soft close.
| ESD Safe | No |
| Series | 15 Series, 40 Series |
| Material | Nylon |
| Color | Black |
| A | .260" |
| B | .310" |
| C | .177" |
| D | .768" |
| E | .130" |
| F | .780" |
| G | 1.634" |
| H | .582" |
| J | .289" |
| K | .976" |
| L | 1.555" |
| M | .177" |
| N | .307" x .118" Deep |
| Weight | 0.280000 |
The nylon rubber door stop is a cost-effective option that prevents a door from swinging too far into the frame. It includes rubber bumpers for a soft close.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 11-4312 | 2 | M4 x 12.00mm Button Head Socket Cap Screw (BHSCS) |
| 25-1941 | 2 | M4 Slide-in Economy T-Nut - Offset Thread |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series 15 Series, 40 Series Material Nylon Color Black A .260" B .310" C .177" D .768" E .130" F .780" G 1.634" H .582" J .289" K .976" L 1.555" M .177" N .307" x .118" Deep Weight 0.280000
-
- Description
The nylon rubber door stop is a cost-effective option that prevents a door from swinging too far into the frame. It includes rubber bumpers for a soft close.
