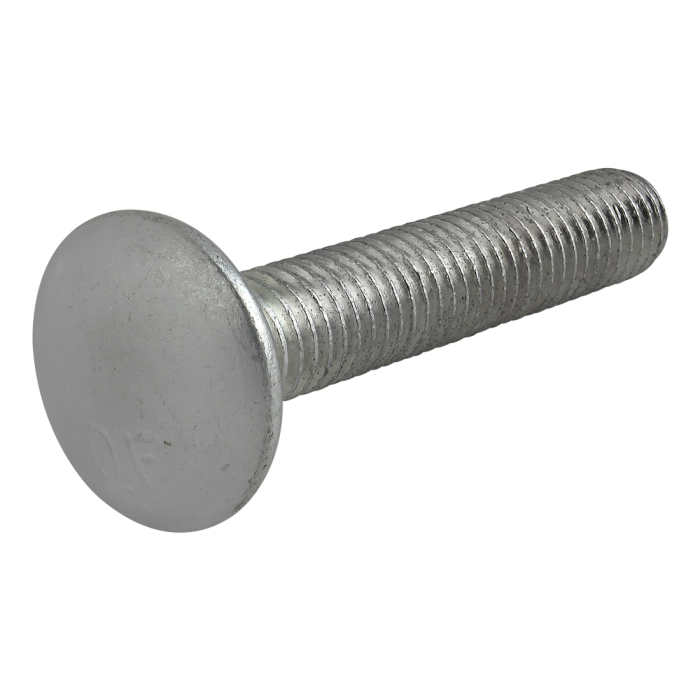

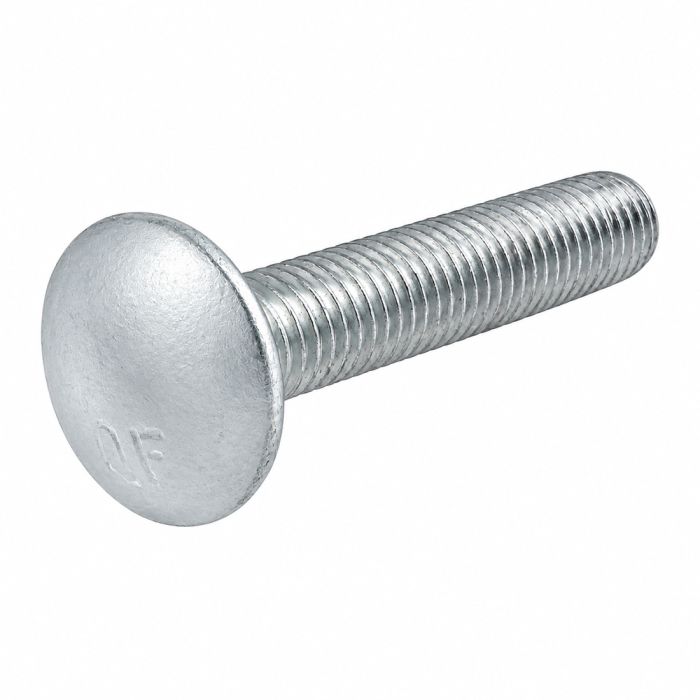

19-8945

Product Specs

• Product Details
  •

    Series	40 Series
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	49.00mm
    B	3.50mm
    C (Thread)	M8 x 1.25
    D (Length)	45.00mm
    E	17.75mm
    F	7.80mm
    Weight	0.045000
