Product Specs

• Product Details
  •

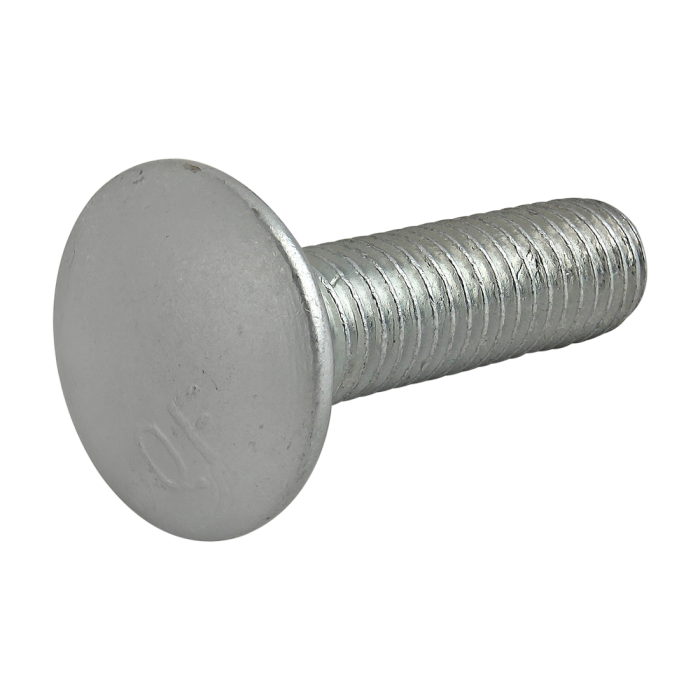

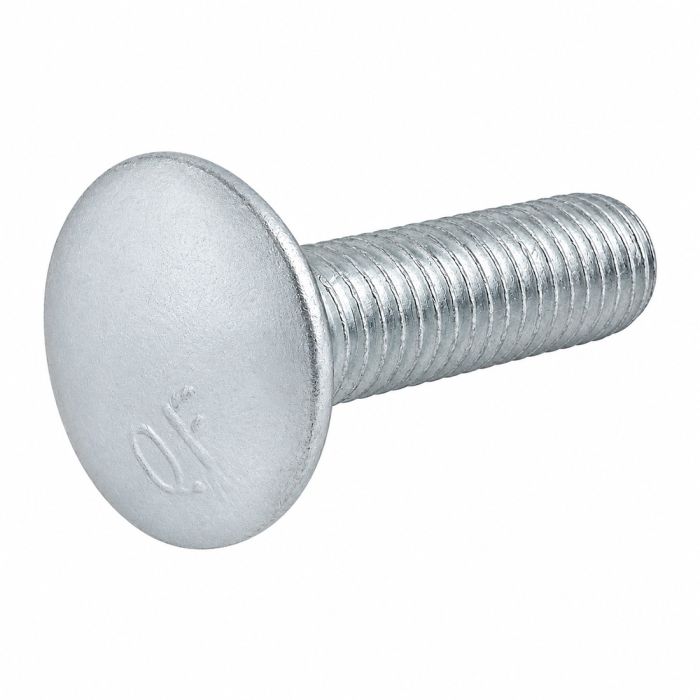

    Series	40 Series
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	34.50mm
    B	3.50mm
    C (Thread)	M8 x 1.25
    D (Length)	30.00mm
    E	17.75mm
    F	7.80mm
    Weight	0.032000
