45 Series 3 Way - Light Squared Corner Connector
45 Series 3 Way - Light Squared Corner Connector

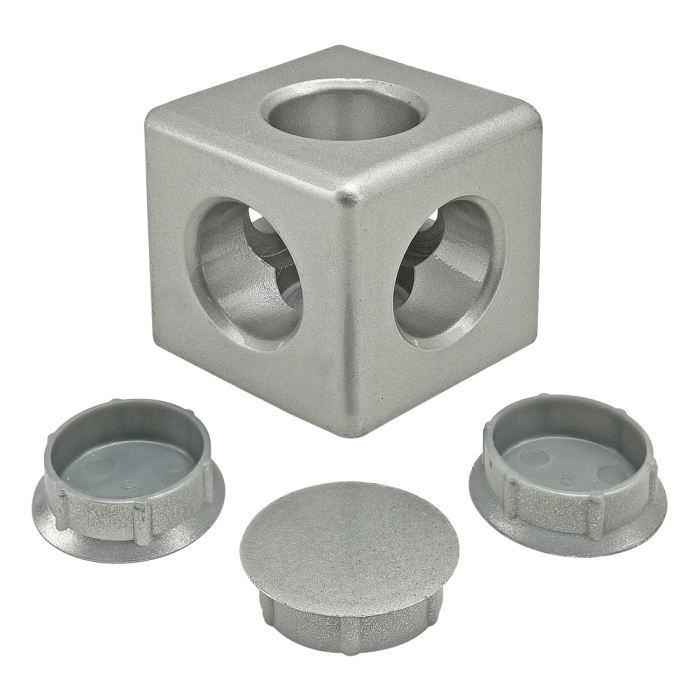

The 3 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between three profiles. The fastener is lightweight and has three access holes; it includes the cover caps for the holes, to provide a finished look. The 3 way - light squared corner connector requires an end tap machining service on the mating profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
The 3 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between three profiles. The fastener is lightweight and has three access holes; it includes the cover caps for the holes, to provide a finished look. The 3 way - light squared corner connector requires an end tap machining service on the mating profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
| ESD Safe | Yes |
| Series | 45 Series |
| Material | Aluminum |
| Finish | Lacquered |
| Cap | Included |
| A | 16.00mm |
| B | 4.00mm |
| C | 13.00mm |
| D | 29.00mm |
| E | 8.00mm |
| F | 14.50mm |
| G | 45.00mm |
| H | 22.50mm |
| J | 22.50mm |
| K | 23.70mm |
| Weight | 0.350800 |
The 3 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between three profiles. The fastener is lightweight and has three access holes; it includes the cover caps for the holes, to provide a finished look. The 3 way - light squared corner connector requires an end tap machining service on the mating profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
Mount to Profile End
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 13003 | 3 | M12 x 30.00mm Connecting Screws (CS) |
Product Specs
- Product Details
-
ESD Safe Yes Series 45 Series Material Aluminum Finish Lacquered Cap Included A 16.00mm B 4.00mm C 13.00mm D 29.00mm E 8.00mm F 14.50mm G 45.00mm H 22.50mm J 22.50mm K 23.70mm Weight 0.350800
-
- Description
The 3 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between three profiles. The fastener is lightweight and has three access holes; it includes the cover caps for the holes, to provide a finished look. The 3 way - light squared corner connector requires an end tap machining service on the mating profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Mount to Profile End
Series Part Number Qty Description 13003 3 M12 x 30.00mm Connecting Screws (CS)
-
