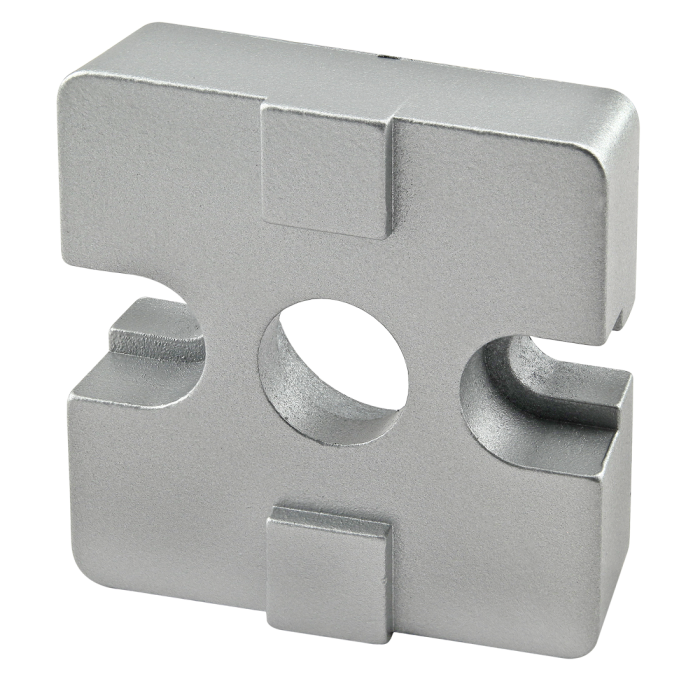

45 Series Plate Connector
45 Series Plate Connector
The plate connector is a strong external fastening method offering a long-lasting connection. The plate connector loads from the side or end of the profile and forms a 90 degree connection. The plate connector allows users to mount to the mating profile.
Total Price
................................................................................................................................Series | 45 Series |
Material | Zinc |
Finish | Powder Coat |
A | 45.00mm |
B | 24.50mm |
C | 13.00mm |
D | 10.00mm |
E | 32.00mm |
F | 14.70mm |
G | 6.50mm |
H | 13.00mm |
J | 7.00mm |
K | 11.00mm |
Weight | 0.197200 |

The plate connector is a strong external fastening method offering a long-lasting connection. The plate connector loads from the side or end of the profile and forms a 90 degree connection. The plate connector allows users to mount to the mating profile.
Mount To Profile
Series | Part Number | Qty | Description |
---|---|---|---|
![]() | 13004 | 1 | M12 x 30.00mm Connecting Screws (CS) |
![]() | 11-6516 | 2 | M6 x 16.00mm Socket Head Cap Screw (SHCS) |
![]() | 13129 | 2 | 45 Series M6 Standard Drop-in T-Nut |
Product Specs
- Product Details
-
Series 45 Series Material Zinc Finish Powder Coat A 45.00mm B 24.50mm C 13.00mm D 10.00mm E 32.00mm F 14.70mm G 6.50mm H 13.00mm J 7.00mm K 11.00mm Weight 0.197200
-
- Description
- The plate connector is a strong external fastening method offering a long-lasting connection. The plate connector loads from the side or end of the profile and forms a 90 degree connection. The plate connector allows users to mount to the mating profile.
-
Sugg. Hardware
Mount To Profile
Series Part Number Qty Description 13004 1 M12 x 30.00mm Connecting Screws (CS)
11-6516 2 M6 x 16.00mm Socket Head Cap Screw (SHCS)
13129 2 45 Series M6 Standard Drop-in T-Nut
