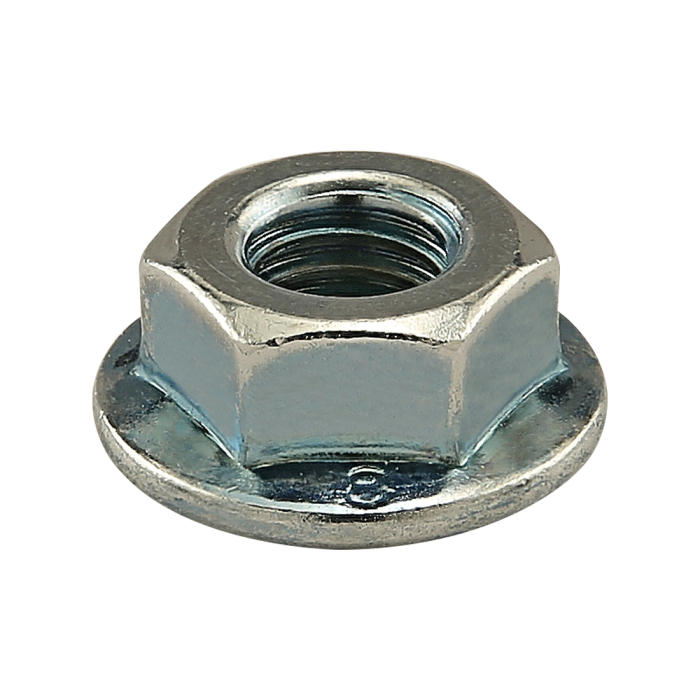

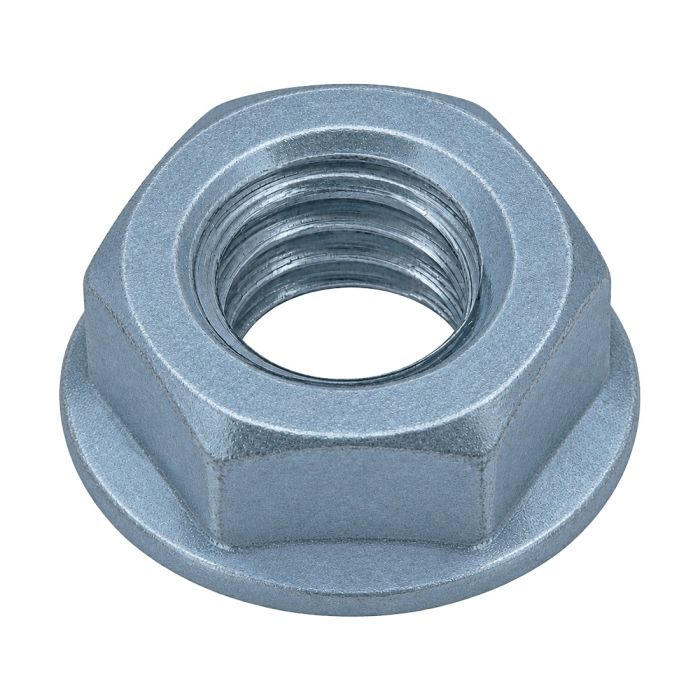

14156

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Grade	Class 8
    Finish	Zinc
    Color	Bright Blue
    Thread Lock	No
    A	14.20mm
    B	10.00mm
    C	M6 X 1.0
    D	1.10mm
    E	3.10mm
    F	6.00mm
    Weight	0.008000
