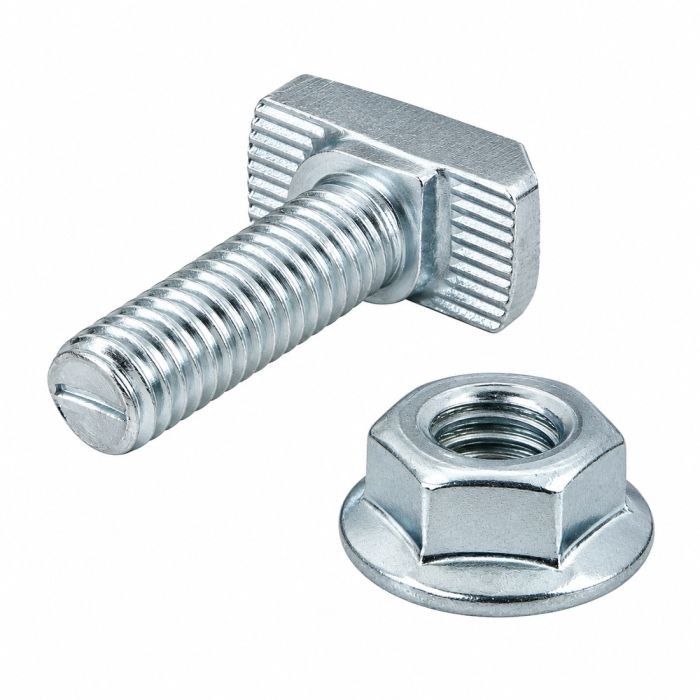

75-3633

Product Specs

• Product Details
  •

    Series	30 Series
    Material	Steel
    Finish	Zinc
    Color	Bright / Blue

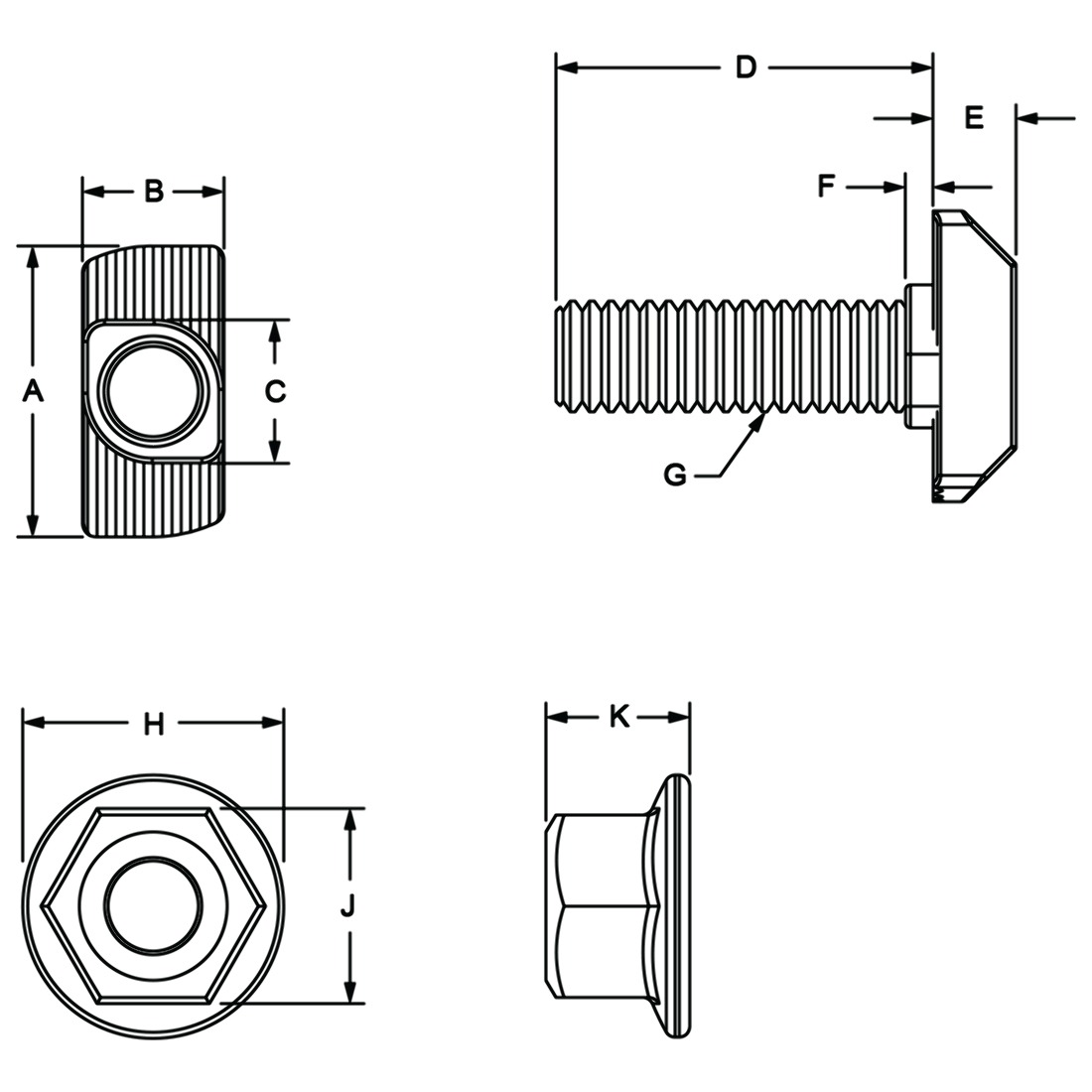

    A	15.75mm
    B	7.75mm
    C	7.80mm
    D	20.00mm
    E	4.50mm
    F	1.50mm
    G	M6 X 1.0
    H	14.20mm
    J	9.89mm
    K	5.85mm
    Weight	0.010000
