14131

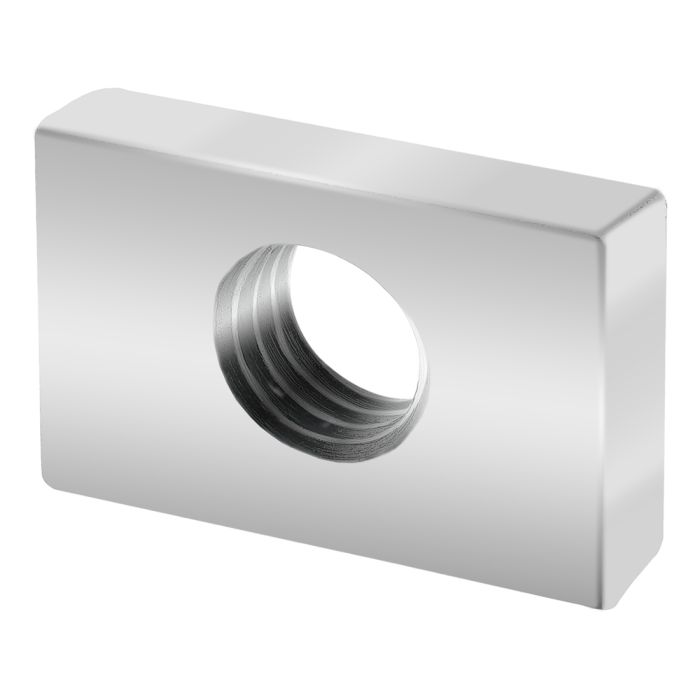

M8 Slide-in Economy T-Nut Block
M8 Slide-in Economy T-Nut Block
The slide-in economy T-nut block is a fastening option that loads from the profile ends. It is the most cost-effective slide-in T-nut and also provides infinite positioning along the profile T-slot. This fastener is available in a variety of sizes and threads.
Total Price
................................................................................................................................| Series | 15 Series, 40 Series, 45 Series |
| Material | Steel |
| Grade | ST50 |
| Process | Stamped |
| Finish | Bright Zinc |
| Color | Silver |
| A | 20.00mm |
| B | 13.00mm |
| C (Thread) | M8 X 1.25 |
| D | 5.00mm |
| Weight | 0.018000 |
The slide-in economy T-nut block is a fastening option that loads from the profile ends. It is the most cost-effective slide-in T-nut and also provides infinite positioning along the profile T-slot. This fastener is available in a variety of sizes and threads.
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 75-3630 | 2 | Bolt Assembly: M8 x 20.00mm Black SHCS with Standard Drop-In T-Nut - Bright Zinc |
Mount to Profile End
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 11-2525 | 2 | M12 x 25.00mm Low Head Socket Cap Screw (LHSCS) |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Series 15 Series, 40 Series, 45 Series Material Steel Grade ST50 Process Stamped Finish Bright Zinc Color Silver A 20.00mm B 13.00mm C (Thread) M8 X 1.25 D 5.00mm Weight 0.018000
-
- Description
The slide-in economy T-nut block is a fastening option that loads from the profile ends. It is the most cost-effective slide-in T-nut and also provides infinite positioning along the profile T-slot. This fastener is available in a variety of sizes and threads.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 75-3630 2 Bolt Assembly: M8 x 20.00mm Black SHCS with Standard Drop-In T-Nut - Bright Zinc Mount to Profile End
Series Part Number Qty Description Select Qty / Add To Cart 11-2525 2 M12 x 25.00mm Low Head Socket Cap Screw (LHSCS)
