45 Degree Support Connector
45 Degree Support Connector

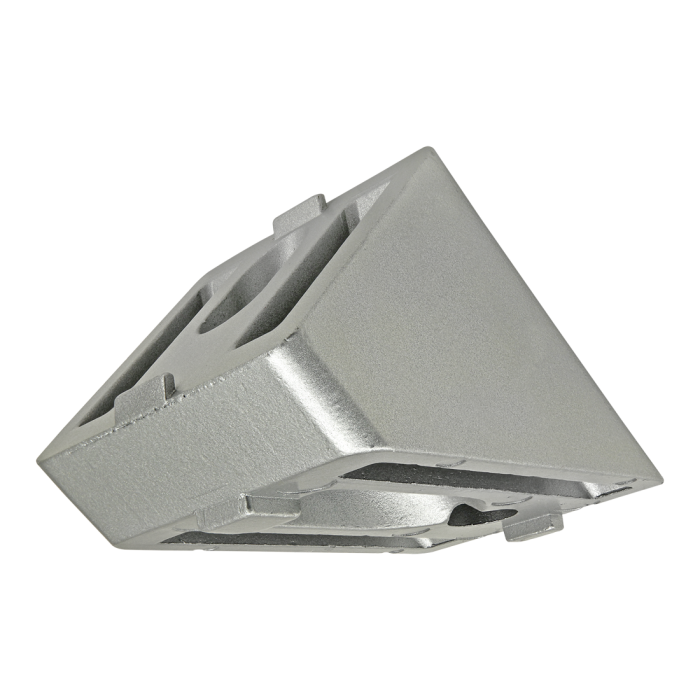

The 45 degree support connector provides a clean, flush connection and is typically used to reinforce a 90 degree connection. It requires minimal machining (an end tap to the support bar) and mounts using standard hardware. The 45 degree support connector is designed for use with 40mm by 40mm profiles. This connection lends itself to applications with heavy loads to minimize beam deflection. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
....................................................................................................................................................................................................................................................
Total Price
$7.80| Series | 40 Series |
| Material | Aluminum |
| Finish | Powder Coat |
| Color | Clear |
| A | 52.00mm |
| B | 40.00mm |
| C | 45° |
| D | 2.00mm |
| E | 8.00mm |
| F | 9.00mm |
| Weight | 0.468000 |
The 45 degree support connector provides a clean, flush connection and is typically used to reinforce a 90 degree connection. It requires minimal machining (an end tap to the support bar) and mounts using standard hardware. The 45 degree support connector is designed for use with 40mm by 40mm profiles. This connection lends itself to applications with heavy loads to minimize beam deflection. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Mount to Profile End
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 11-8520 | 1 | M8 x 20.00mm Socket Head Cap Screw (SHCS) |
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
| 75-3621 | 1 | Bolt Assembly: M8 x 16.00mm Black SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 40 Series Material Aluminum Finish Powder Coat Color Clear A 52.00mm B 40.00mm C 45° D 2.00mm E 8.00mm F 9.00mm Weight 0.468000
-
- Description
The 45 degree support connector provides a clean, flush connection and is typically used to reinforce a 90 degree connection. It requires minimal machining (an end tap to the support bar) and mounts using standard hardware. The 45 degree support connector is designed for use with 40mm by 40mm profiles. This connection lends itself to applications with heavy loads to minimize beam deflection. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Mount to Profile End
Series Part Number Qty Description Select Qty / Add To Cart 11-8520 1 M8 x 20.00mm Socket Head Cap Screw (SHCS)
Mount to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 75-3621 1 Bolt Assembly: M8 x 16.00mm Black SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc
