Product Specs

• Product Details
  •

    ESD Safe	N/A
    Series	N/A
    Material	Zinc
    Grade	N/A
    Process	Die Cast
    Finish	Powder Coat
    Color	Black
    A	30.00mm
    B	15.00mm
    C	30.00mm
    D	15.00mm
    E	30.00mm
    F	M10 X 1.50
    G	M6 SHCS
    H	16.00mm
    J	60.00mm
    Weight	0.228000

• Description

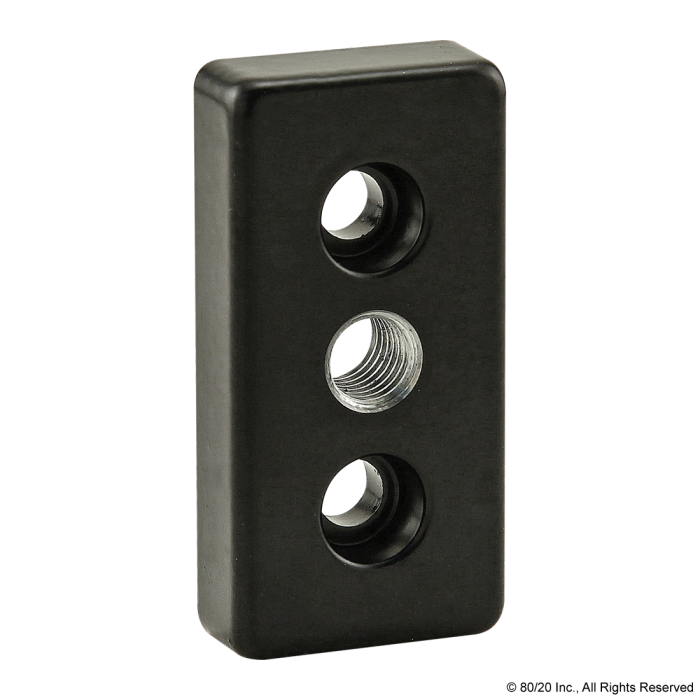

  • The 3 hole – die-cast center tap base plate has a black powder coat finish. It mounts leveling feet and threaded stem casters, and is commonly used on a rectangular profile end to center mount the foot or caster. This base plate can also be used on a profile side. It requires a tap to mount to a profile end. Additional Information: When using an M12 socket head cap screw (SHCS) the base plate can only be mounted to the profile end.
• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	75-3593	2	Bolt Assembly: M6 x 14.00mm Black SHCS with Standard Drop-In T-Nut - Bright Zinc

    Mount to Profile End

    Series	Part Number	Qty	Description
    	11-8520	2	M8 x 20.00mm Socket Head Cap Screw (SHCS)
