15 Series 2 Hole - Pivot Joint
15 Series 2 Hole - Pivot Joint

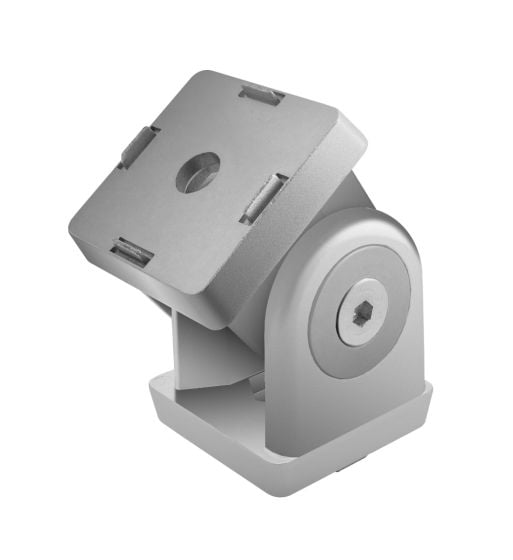

The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector mounts to the end of a profile, which requires an end tap. The screws on the arms can be adjusted for movement or fixed in one position. The suggested hardware for the 2 hole - pivot joint can be found on the "Suggested Hardware" tab.
The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector mounts to the end of a profile, which requires an end tap. The screws on the arms can be adjusted for movement or fixed in one position. The suggested hardware for the 2 hole - pivot joint can be found on the "Suggested Hardware" tab.
Total Price
................................................................................................................................Series | 15 Series |
Material | Zinc |
Process | Die Cast |
Finish | Powder Coat |
A | 1.570" |
B | .790" |
C | .340" |
D | .790" |
E | 1.570" |
F | 2.520" |
G | .079" |
H | .039" |
J | 1.378" |
K | 1.575" |
L | .531" |
M | .315" |
Weight | 0.641000 |
The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector mounts to the end of a profile, which requires an end tap. The screws on the arms can be adjusted for movement or fixed in one position. The suggested hardware for the 2 hole - pivot joint can be found on the "Suggested Hardware" tab.
Mount to T-Slot
Series | Part Number | Qty | Description |
---|---|---|---|
![]() | 3456 | 2 | Bolt Assembly: 5/16-18 x .625" Black SHCS and Roll-In T-Nut with Flex Handle - Black Zinc |
Mount to Profile End
Series | Part Number | Qty | Description |
---|---|---|---|
![]() | 3122 | 2 | 5/16-18 x 1.000" Socket Head Cap Screw (SHCS) |
Product Specs
- Product Details
-
Series 15 Series Material Zinc Process Die Cast Finish Powder Coat A 1.570" B .790" C .340" D .790" E 1.570" F 2.520" G .079" H .039" J 1.378" K 1.575" L .531" M .315" Weight 0.641000
-
- Description
The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector mounts to the end of a profile, which requires an end tap. The screws on the arms can be adjusted for movement or fixed in one position. The suggested hardware for the 2 hole - pivot joint can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Mount to T-Slot
Series Part Number Qty Description 3456 2 Bolt Assembly: 5/16-18 x .625" Black SHCS and Roll-In T-Nut with Flex Handle - Black Zinc Mount to Profile End
Series Part Number Qty Description 3122 2 5/16-18 x 1.000" Socket Head Cap Screw (SHCS)
