13183

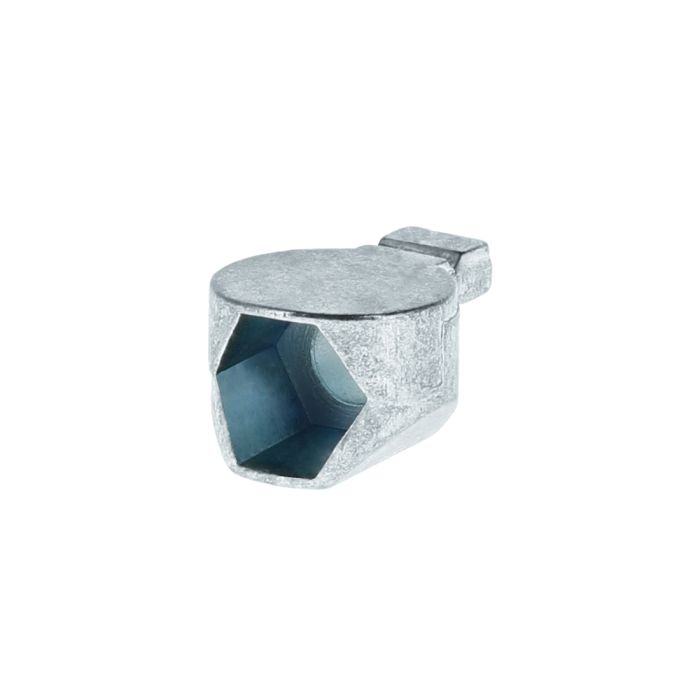

20 Series Bright Anchor Fastener Cam Only
20 Series Bright Anchor Fastener Cam Only
The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.
| ESD Safe | Yes |
| Series | 20 Series |
| Material | Zinc |
| Cam Color | Bright |
| A | 16.90mm |
| B | 5.00mm |
| C | 11.80mm |
| D | 8.50mm |
| Weight | 0.007000 |
The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe Yes Series 20 Series Material Zinc Cam Color Bright A 16.90mm B 5.00mm C 11.80mm D 8.50mm Weight 0.007000
-
- Description
The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.
-
