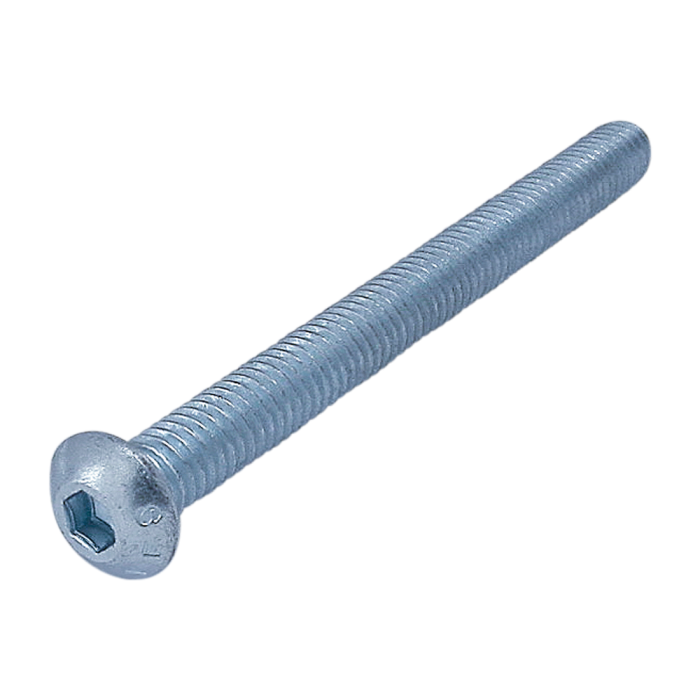

13-3948

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Blue
    A	14.00mm
    B	8.00mm
    C	6.60mm
    D (Length)	80.00mm
    E (Thread)	M8 X 1.25
    Thread Length	Full Thread
    Weight	0.058000
