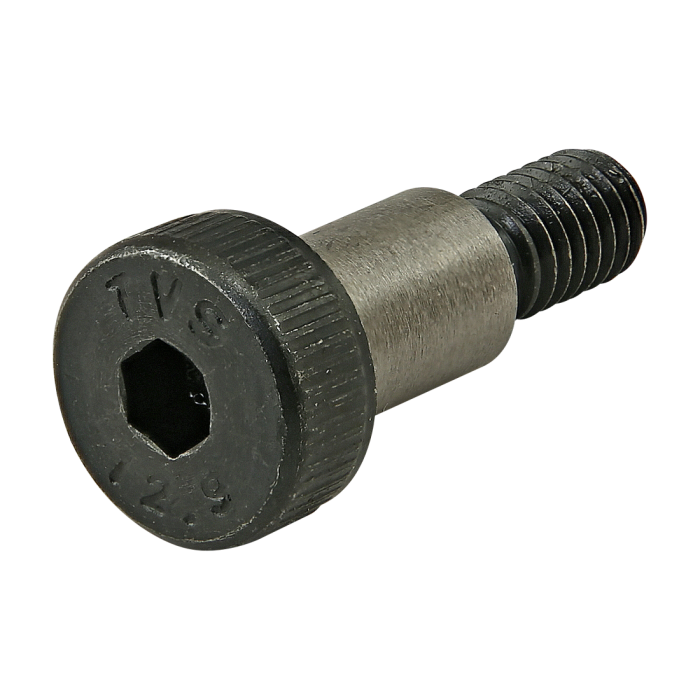

13-1914

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Black

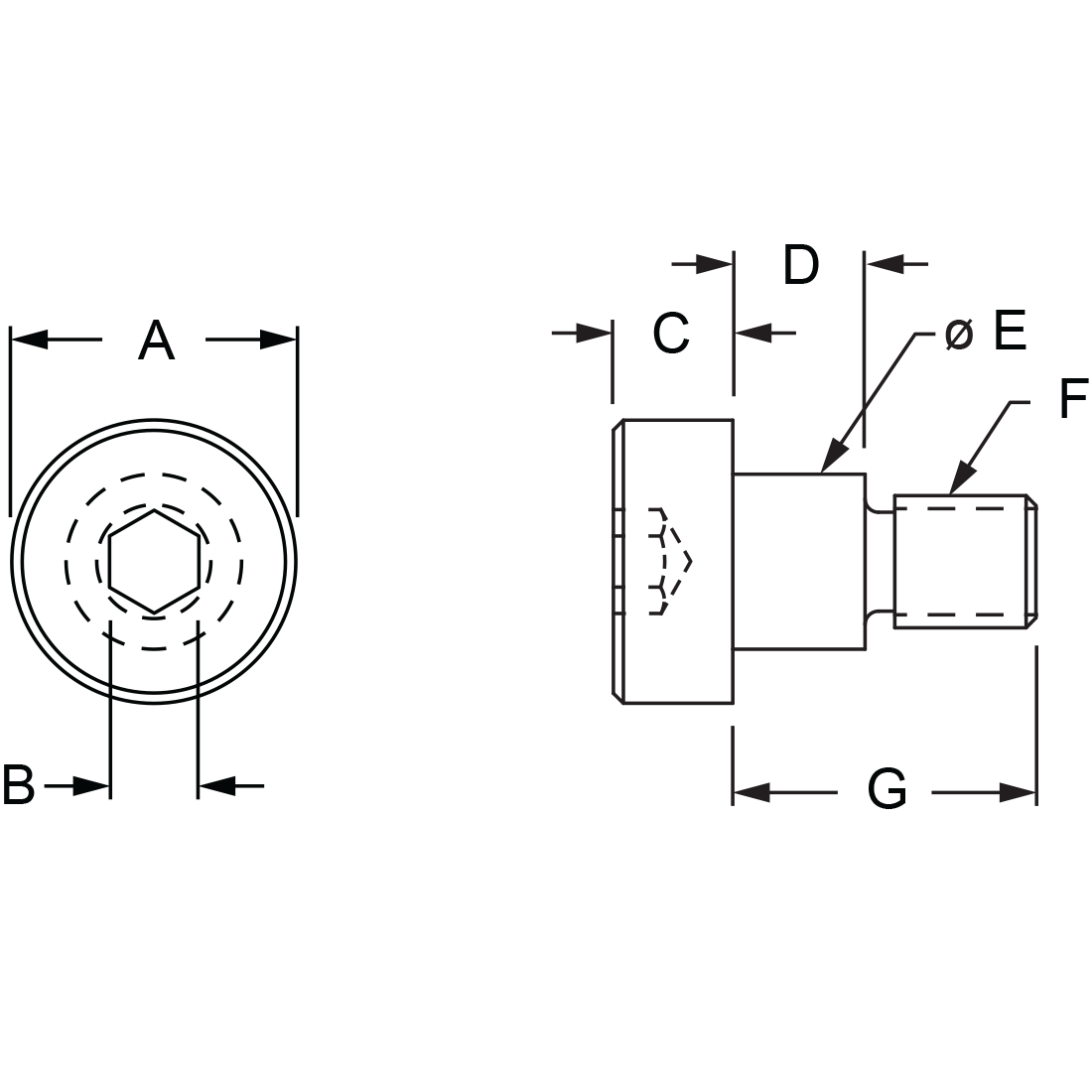

    A	13.00mm
    B	4.00mm
    C	5.50mm
    D	12.00mm
    E (Thread)	M6 x 1.0
    F	23.25mm
    Weight	0.026000
