12300
15 & 40 Series Grounding Terminal
15 & 40 Series Grounding Terminal

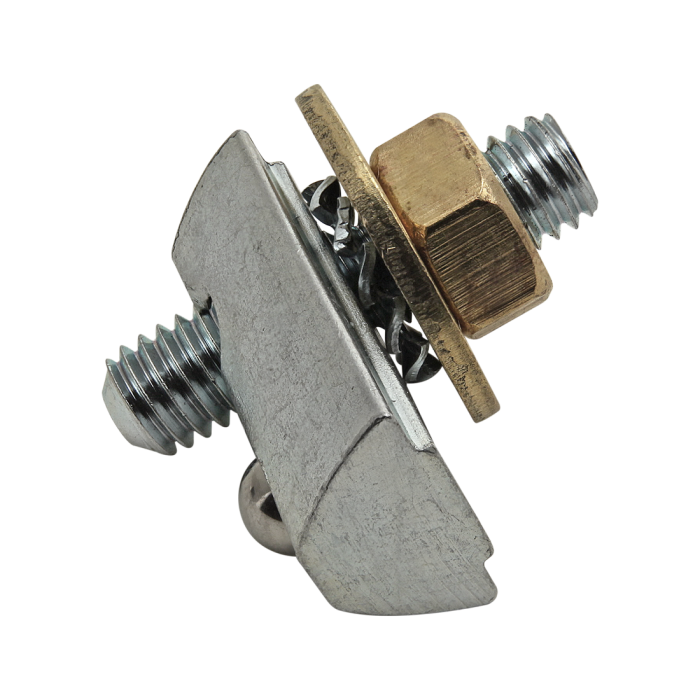

The grounding terminal is made of zinc-plated steel and creates a conductive electrical connection to T-slotted profiles. It is frequently used in applications such as electronics assembly where electrostatic charges must be avoided. All hardware is included. Additional Information: The thread rod is an M6 thread and can be adjusted using a 3.00mm ball end wrench.
The grounding terminal is made of zinc-plated steel and creates a conductive electrical connection to T-slotted profiles. It is frequently used in applications such as electronics assembly where electrostatic charges must be avoided. All hardware is included. Additional Information: The thread rod is an M6 thread and can be adjusted using a 3.00mm ball end wrench.
| Series | 15 Series, 40 Series |
| Material | Steel / Brass |
| Finish | Zinc |
| Color | Bright |
| Process | Assembled |
| A | .709" |
| B | .236" |
| C | .531" |
| D | .984" |
| E | .866" |
| Weight | 0.041000 |
The grounding terminal is made of zinc-plated steel and creates a conductive electrical connection to T-slotted profiles. It is frequently used in applications such as electronics assembly where electrostatic charges must be avoided. All hardware is included. Additional Information: The thread rod is an M6 thread and can be adjusted using a 3.00mm ball end wrench.
Product Specs
- Product Details
-
Series 15 Series, 40 Series Material Steel / Brass Finish Zinc Color Bright Process Assembled A .709" B .236" C .531" D .984" E .866" Weight 0.041000
-
- Description
The grounding terminal is made of zinc-plated steel and creates a conductive electrical connection to T-slotted profiles. It is frequently used in applications such as electronics assembly where electrostatic charges must be avoided. All hardware is included. Additional Information: The thread rod is an M6 thread and can be adjusted using a 3.00mm ball end wrench.
-
