12093

Product Specs

• Product Details
  •

    ESD Safe	No
    Series	20 Series
    Material	Stainless-Steel
    Finish	Stainless
    Process	Machined
    Max Load	50 Nm / 36.8 ft-Lbs.
    A	25.00mm
    B	40.00mm
    C	25.00mm
    D	20.00mm
    E	12.50mm
    F	5.20mm
    G	5.50mm
    H	5.00mm
    Weight	0.119000

• Description

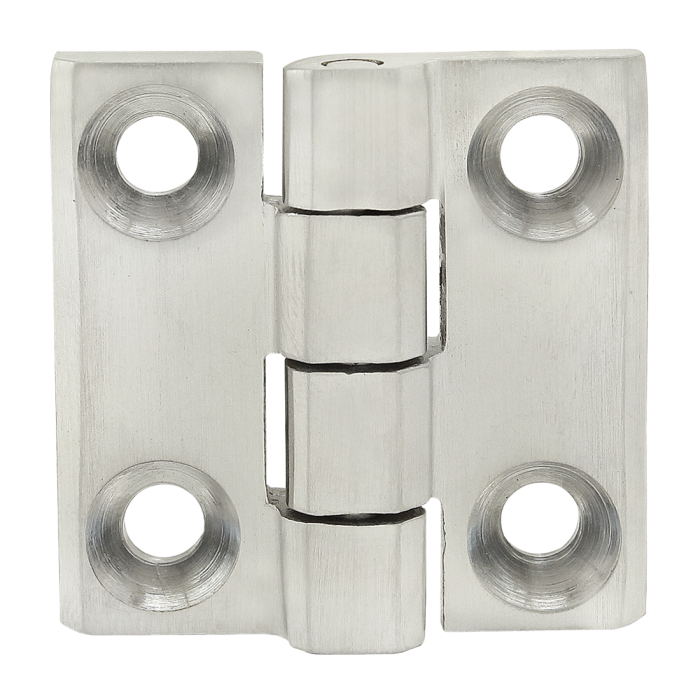

  • The 4 hole - standard stainless steel hinge is made of stainless steel. It is a higher-strength hinge that is commonly used to connect doors and plastic panels to T-slot profiles. The suggested hardware to mount the hinge to a T-slot profile can be found on the "Suggested Hardware" tab.

• Sugg. Hardware

  • Per Leaf Mount to T-slot

    Series	Part Number	Qty	Description
    	75-3572	2	Bolt Assembly: M5 x 10.00mm Black FHSCS with Slide-In Economy T-Nut Block - Bright Zinc

    Per Leaf Mount to Panel LTE .250" / 6mm

    Series	Part Number	Qty	Description
    	11-5716	2	M5 x 16.00mm Flat Head Socket Cap Screw (FHSCS)
    	11-5065	2	M5 Hex Nut
    	11-6040	2	5.30mm ID Washer
