15, 30, & 40 Series Cable & Tube Clip
15, 30, & 40 Series Cable & Tube Clip

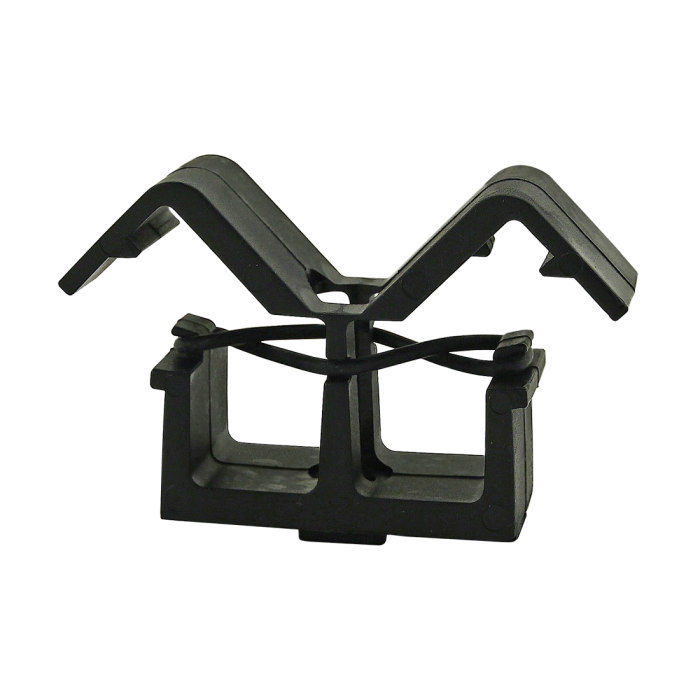

The cable and tube clip is used to organize cables, wires, and tubes without the need for cable ties. It is a reusable option with snap cover which adds an extra layer of protection and can be opened and closed repeatedly. The cable clip mounts to a T-slot profile; see the suggested hardware on the "Suggested Hardware" tab.
The cable and tube clip is used to organize cables, wires, and tubes without the need for cable ties. It is a reusable option with snap cover which adds an extra layer of protection and can be opened and closed repeatedly. The cable clip mounts to a T-slot profile; see the suggested hardware on the "Suggested Hardware" tab.
| ESD Safe | No |
| Series | 15 Series, 30 Series, 40 Series |
| Material | Nylon |
| Grade | PA6 GF30 |
| Finish | Matte |
| Color | Black |
| Process | Molded |

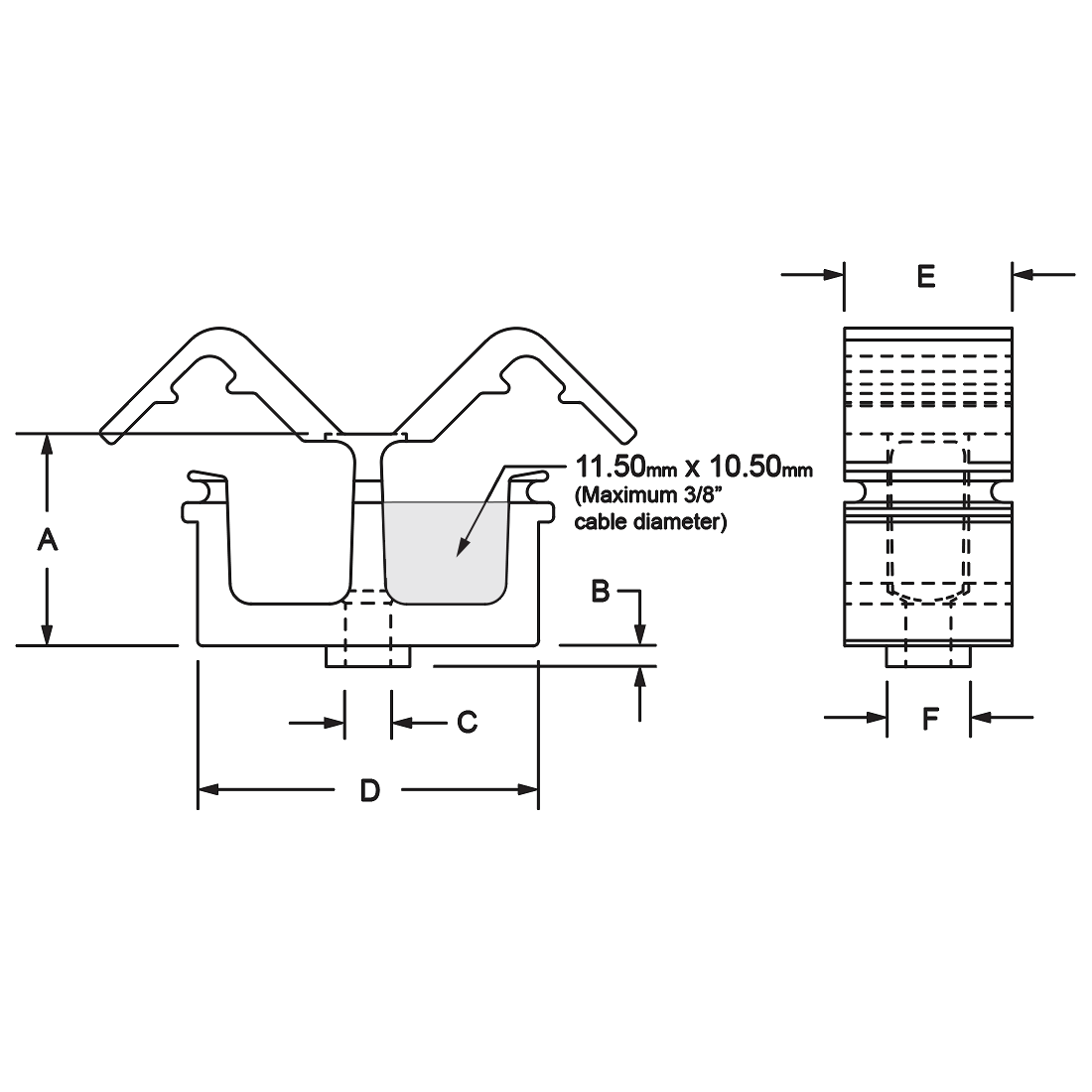

| A | 20.20mm |
| B | 2.00mm |
| C | 4.30mm |
| D | 32.60mm |
| E | 16.00mm |
| F | 8.00mm |
| Weight | 0.022000 |
The cable and tube clip is used to organize cables, wires, and tubes without the need for cable ties. It is a reusable option with snap cover which adds an extra layer of protection and can be opened and closed repeatedly. The cable clip mounts to a T-slot profile; see the suggested hardware on the "Suggested Hardware" tab.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
   | 11-4512 | 1 | M4 x 12.00mm Socket Head Cap Screw (SHCS) |
| 13113 | 1 | 30 Series M4 Standard Drop-in T-Nut |
Product Specs
- Product Details
-
ESD Safe No Series 15 Series, 30 Series, 40 Series Material Nylon Grade PA6 GF30 Finish Matte Color Black Process Molded A 20.20mm B 2.00mm C 4.30mm D 32.60mm E 16.00mm F 8.00mm Weight 0.022000
-
- Description
The cable and tube clip is used to organize cables, wires, and tubes without the need for cable ties. It is a reusable option with snap cover which adds an extra layer of protection and can be opened and closed repeatedly. The cable clip mounts to a T-slot profile; see the suggested hardware on the "Suggested Hardware" tab.
- Sugg. Hardware
-
