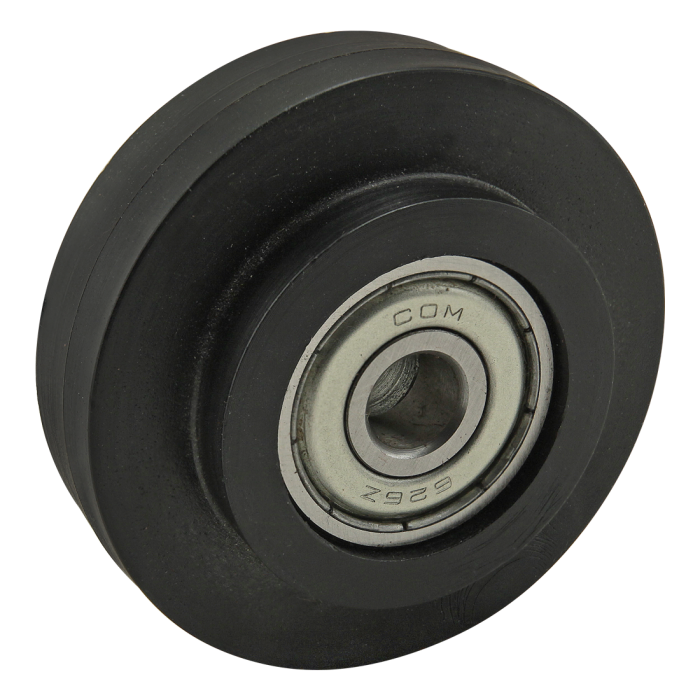

45 Series Roller Wheel with Ball Bearing Hub
45 Series Roller Wheel with Ball Bearing Hub
The roller wheel with ball bearing hub is made of nylon and is reinforced with fiberglass. The ball bearing creates a smooth glide and is used to move frames, panels and components by rolling in the profile T-slot.
| ESD Safe | No |
| Series | 45 Series |
| Material | Nylon PA Glass Fiber Reinforced |
| Grade | PA6GK20 |
| Color | Black |
| Process | Injection Molded |
| A | 39.00mm |
| B | 25.80mm |
| C | 6.00mm |
| D | 17.60mm |
| E | 10.00mm |
| F | 3.80mm |
| Weight | 0.067000 |
The roller wheel with ball bearing hub is made of nylon and is reinforced with fiberglass. The ball bearing creates a smooth glide and is used to move frames, panels and components by rolling in the profile T-slot.
Product Specs
- Product Details
-
ESD Safe No Series 45 Series Material Nylon PA Glass Fiber Reinforced Grade PA6GK20 Color Black Process Injection Molded A 39.00mm B 25.80mm C 6.00mm D 17.60mm E 10.00mm F 3.80mm Weight 0.067000
-
- Description
The roller wheel with ball bearing hub is made of nylon and is reinforced with fiberglass. The ball bearing creates a smooth glide and is used to move frames, panels and components by rolling in the profile T-slot.
-
