1012

1.00” X 1.00” Quarter Round T-Slotted Profile - Two Open T-Slots

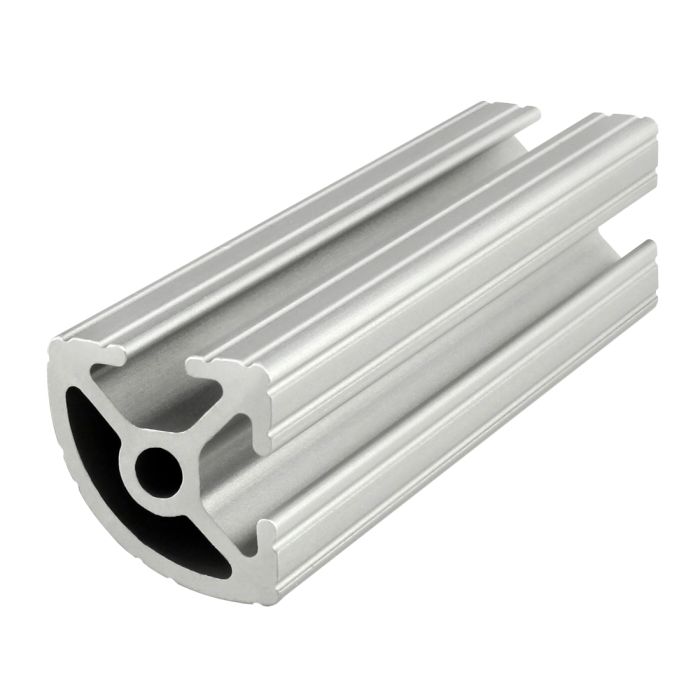

1012 is a 1.00” x 1.00” fractional 10 series quarter round T-slot profile with a .750” radius curved back and two open T-slots, one on each of the 1.00” profile faces. The profile has align-a-grooves to assist in aligning connecting profiles. The 1012 profile is compatible with 10 series fasteners. This profile allows structures or large panels to be easily placed into the open T-slots while lending itself to workstations, displays or exhibits.

....................................................................................................................................................................................................................................................
Price Per Inch
$0.25
*surcharge of $2.26 per cut
Length   +
....................................................................................................................................................................................................................................................
Total Price
$0.00

* Required Fields

1012 is a 1.00” x 1.00” fractional 10 series quarter round T-slot profile with a .750” radius curved back and two open T-slots, one on each of the 1.00” profile faces. The profile has align-a-grooves to assist in aligning connecting profiles. The 1012 profile is compatible with 10 series fasteners. This profile allows structures or large panels to be easily placed into the open T-slots while lending itself to workstations, displays or exhibits.

Add Machining Services +
Applied Machining

No Applied Machining

    Left Right
  • Single Hole End Tap
    1/4-20 D x 1.125" ↧
    Price: $2.26
  • Left Right
  • Single Hole End Tap
    M6 x 1.00 D x 1.125" ↧
    Price: $2.26

  • .219" D accesshole
    7051
    | Price: $2.26
    Face X Face Y
  • 0° to 75° Mitercut
    Price: $4.00

Adding machining services results in increased lead time.
See here for details

In stock

....................................................................................................................................................................................................................................................
Total Price
$0.25
