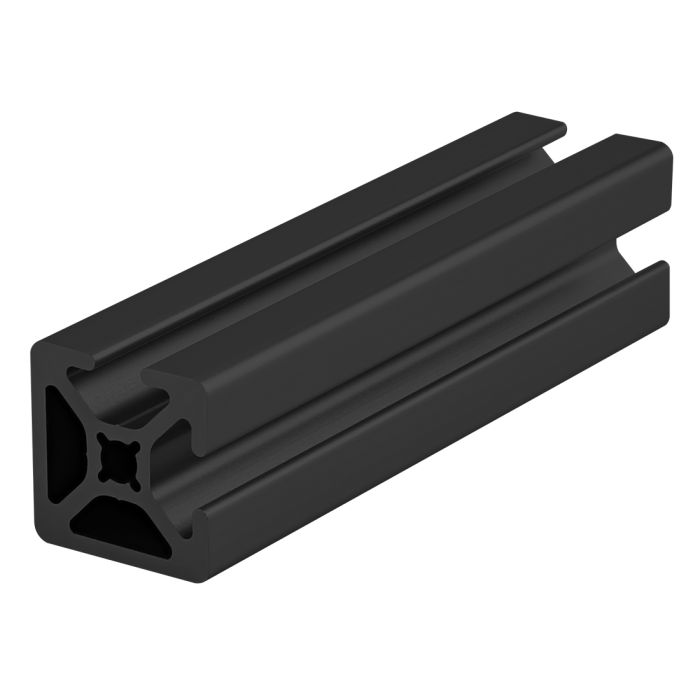

1.00” X 1.00” T-Slotted Profile - Two Adjacent Open T-Slots
1.00” X 1.00” T-Slotted Profile - Two Adjacent Open T-Slots
1002-S-Black-FB is a 1.00” x 1.00” fractional 10 series square T-slot profile with two adjacent open T-slots, one on two 1.00” faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1002-S-Black-FB profile is compatible with 10 series fasteners. The two closed faces on this profile provide a clean, aesthetic look and lends itself to furniture, displays, desks, trade show booths, or retail kiosks
Price Per Inch
$0.891002-S-Black-FB is a 1.00” x 1.00” fractional 10 series square T-slot profile with two adjacent open T-slots, one on two 1.00” faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1002-S-Black-FB profile is compatible with 10 series fasteners. The two closed faces on this profile provide a clean, aesthetic look and lends itself to furniture, displays, desks, trade show booths, or retail kiosks
-
End Taps
-
Counterbores
-
Access Holes
-
Mitercuts
No Applied Machining
- Single Hole End Tap
1/4-20 D x 1.125" ↧
Price: $2.87 - Single Hole End Tap
M6 x 1.00 D x 1.125" ↧
Price: $2.87
- .219" D accesshole
7051 | Price: $2.87
- 0° to 75° Mitercut
Price: $5.08
Counterbore
See here for details
In stock
Total Price
................................................................................................................................Max Length (inches) | 242.000000 |
Series | 10 Series |
Material | Aluminum |
Grade | 6063-T6 |
Finish | Anodize |
Color | Black |
Drop Lock | 2° |
Moment of Inertia - IX | 0.0518”⁴ |
Moment of Inertia - IY | 0.0518”⁴ |
Surface Area | .484 Sq. In. |
Yield Strength | 25,000 psi |
Modulus of Elasticity | 10,000,000 Lbs. / Sq. In. |
Weight lbs | 0.0470 per inch |
Weight | 0.047000 |

1002-S-Black-FB is a 1.00” x 1.00” fractional 10 series square T-slot profile with two adjacent open T-slots, one on two 1.00” faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1002-S-Black-FB profile is compatible with 10 series fasteners. The two closed faces on this profile provide a clean, aesthetic look and lends itself to furniture, displays, desks, trade show booths, or retail kiosks
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
Max Length (inches) 242.000000 Series 10 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Black Drop Lock 2° Moment of Inertia - IX 0.0518”^4 Moment of Inertia - IY 0.0518”^4 Surface Area .484 Sq. In. Yield Strength 25,000 psi Modulus of Elasticity 10,000,000 Lbs. / Sq. In. Weight lbs 0.0470 per inch Weight 0.047000
-
- Description
1002-S-Black-FB is a 1.00” x 1.00” fractional 10 series square T-slot profile with two adjacent open T-slots, one on two 1.00” faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 1002-S-Black-FB profile is compatible with 10 series fasteners. The two closed faces on this profile provide a clean, aesthetic look and lends itself to furniture, displays, desks, trade show booths, or retail kiosks
