()W-6PSB-KIT

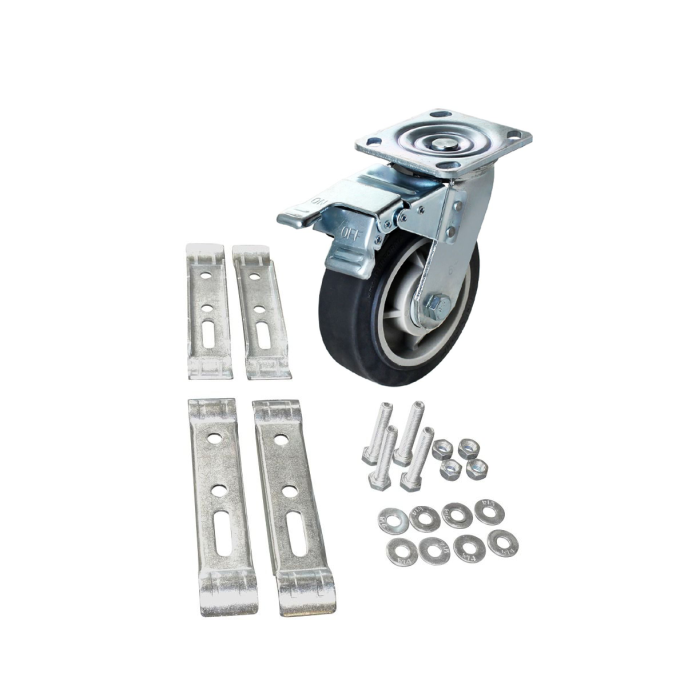

6" Swivel Plate Caster with Brake - Kit
The 6" swivel plate caster with total-lock brake has a loading capacity of 500 pounds (227 kg) and a maximum speed of 2.5Mph. To make it easier for you, the W-6PSB-KIT comes with four WF-LARGE, four M8-45B, four M8-N and eight F-W516 unassembled.
The 6" casters are made for carts that will go outside, roll on ramps or damaged floors. This wheel is used for heavy duty structures like carts that transport massive parts and racks which need enormous support capacity. This is a big piece that takes up a lot of space, so it should only be used when necessary.
The W6-PSB casters have a double ball bearing, and the wheel itself is made of thermoplastic rubber.
A Flexpipe Product

The 6" swivel plate caster with total-lock brake has a loading capacity of 500 pounds (227 kg) and a maximum speed of 2.5Mph. To make it easier for you, the W-6PSB-KIT comes with four WF-LARGE, four M8-45B, four M8-N and eight F-W516 unassembled.
The 6" casters are made for carts that will go outside, roll on ramps or damaged floors. This wheel is used for heavy duty structures like carts that transport massive parts and racks which need enormous support capacity. This is a big piece that takes up a lot of space, so it should only be used when necessary.
The W6-PSB casters have a double ball bearing, and the wheel itself is made of thermoplastic rubber.
A Flexpipe Product

| ESD Safe | No |
| Weight | 7.140000 |
| Series | Pipe |
| Type | Rigid |
| Material | Thermoplastic Rubber |
| Color | Gray Wheels / Gray Rims |
| Load Capacity | 500 lbs (227kg) |
| Wheel Diameter | 6.000” (150.00mm) |
| Caster Height | 7.500” (190.00mm) |
| Wheel Width | 1.625” (42.00mm) |
| Max Speed | 2.5 mph |
The 6" swivel plate caster with total-lock brake has a loading capacity of 500 pounds (227 kg) and a maximum speed of 2.5Mph. To make it easier for you, the W-6PSB-KIT comes with four WF-LARGE, four M8-45B, four M8-N and eight F-W516 unassembled.
The 6" casters are made for carts that will go outside, roll on ramps or damaged floors. This wheel is used for heavy duty structures like carts that transport massive parts and racks which need enormous support capacity. This is a big piece that takes up a lot of space, so it should only be used when necessary.
The W6-PSB casters have a double ball bearing, and the wheel itself is made of thermoplastic rubber.
A Flexpipe Product

** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Weight 7.140000 Series Pipe Type Rigid Material Thermoplastic Rubber Color Gray Wheels / Gray Rims Load Capacity 500 lbs (227kg) Wheel Diameter 6.000” (150.00mm) Caster Height 7.500” (190.00mm) Wheel Width 1.625” (42.00mm) Max Speed 2.5 mph
-
- Description
The 6" swivel plate caster with total-lock brake has a loading capacity of 500 pounds (227 kg) and a maximum speed of 2.5Mph. To make it easier for you, the W-6PSB-KIT comes with four WF-LARGE, four M8-45B, four M8-N and eight F-W516 unassembled.
The 6" casters are made for carts that will go outside, roll on ramps or damaged floors. This wheel is used for heavy duty structures like carts that transport massive parts and racks which need enormous support capacity. This is a big piece that takes up a lot of space, so it should only be used when necessary.
The W6-PSB casters have a double ball bearing, and the wheel itself is made of thermoplastic rubber.
A Flexpipe Product

-
