W-4ESB

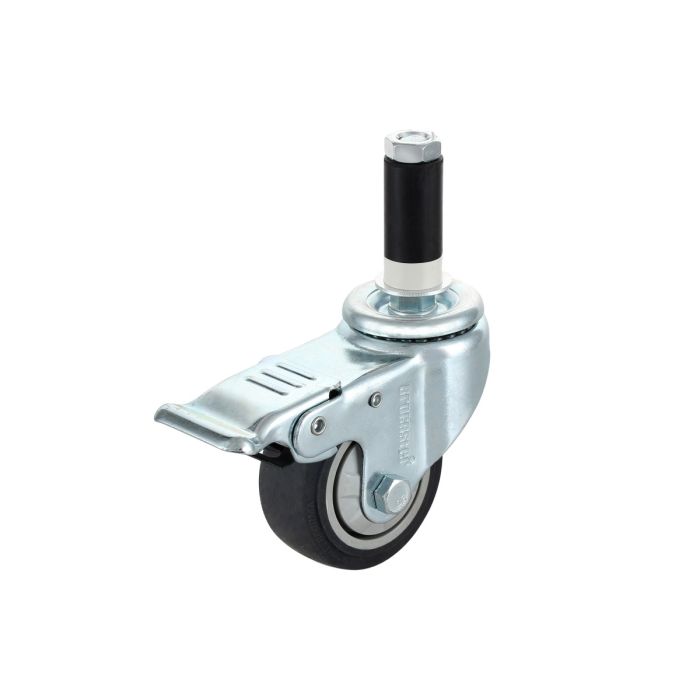

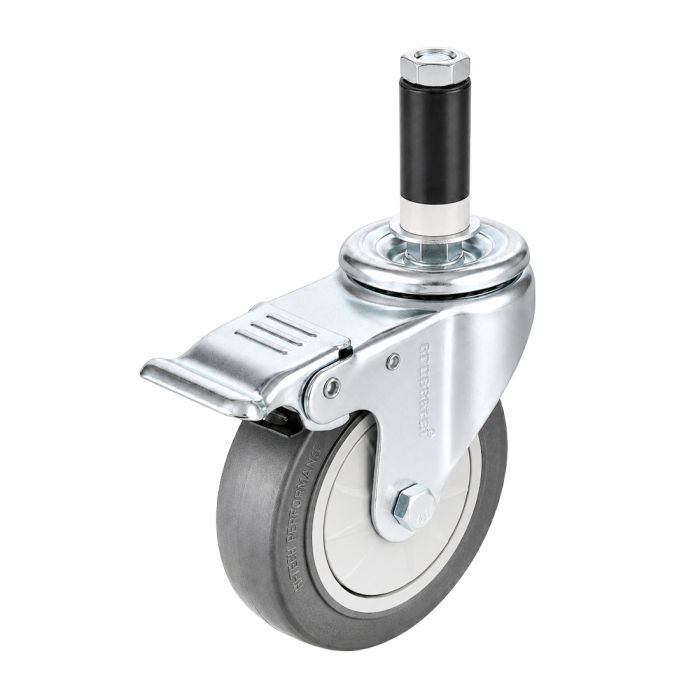

4" Swivel Stem Caster with Brake
The 4 inches swivel stem caster with brake and a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place.
Use the F-BUS component when this caster is used with the EP-96-ST pipe.
Bolt M12 (12 mm) Length 2 1/4" (57.15 mm)
4 inches casters are made for:
- More or less long trips (30 to 50 feet)
- Frequent use (20 to 50 times a day)
- Carts weighting less than 400 pounds
- Narrow carts (between 16 and 24 in. wide)
W-4ESB has an electric conductivity version (ESD) : EW-4ESB
For more frequent use or longer trips, we recommend considering the W-6PSB caster.
For carts that will go outside, roll on ramps or damaged floors, it's preferable to use 6 inches casters.
All casters are equipped with a precision ball bearing.
A Flexpipe Product
The 4 inches swivel stem caster with brake and a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place.
Use the F-BUS component when this caster is used with the EP-96-ST pipe.
Bolt M12 (12 mm) Length 2 1/4" (57.15 mm)
4 inches casters are made for:
- More or less long trips (30 to 50 feet)
- Frequent use (20 to 50 times a day)
- Carts weighting less than 400 pounds
- Narrow carts (between 16 and 24 in. wide)
W-4ESB has an electric conductivity version (ESD) : EW-4ESB
For more frequent use or longer trips, we recommend considering the W-6PSB caster.
For carts that will go outside, roll on ramps or damaged floors, it's preferable to use 6 inches casters.
All casters are equipped with a precision ball bearing.
A Flexpipe Product
| ESD Safe | No |
| Weight | 1.900000 |
| Series | Pipe |
| Type | Swivel with Brake |
| Material | Thermoplastic Rubber |
| Color | Gray Wheels / Gray Rims |
| Load Capacity | 250 lbs (113 kg) |
| Stem Size | M12 x 2.25” (57.15mm) |
| Wheel Diameter | 4.000” (100.00mm) |
| Caster Height | 5.000” (127.00mm) |
| Wheel Width | 1.125” (28.00mm) |
| Max Speed | 2.5 mph |
The 4 inches swivel stem caster with brake and a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place.
Use the F-BUS component when this caster is used with the EP-96-ST pipe.
Bolt M12 (12 mm) Length 2 1/4" (57.15 mm)
4 inches casters are made for:
- More or less long trips (30 to 50 feet)
- Frequent use (20 to 50 times a day)
- Carts weighting less than 400 pounds
- Narrow carts (between 16 and 24 in. wide)
W-4ESB has an electric conductivity version (ESD) : EW-4ESB
For more frequent use or longer trips, we recommend considering the W-6PSB caster.
For carts that will go outside, roll on ramps or damaged floors, it's preferable to use 6 inches casters.
All casters are equipped with a precision ball bearing.
A Flexpipe Product
Product Specs
- Product Details
-
ESD Safe No Weight 1.900000 Series Pipe Type Swivel with Brake Material Thermoplastic Rubber Color Gray Wheels / Gray Rims Load Capacity 250 lbs (113 kg) Stem Size M12 x 2.25” (57.15mm) Wheel Diameter 4.000” (100.00mm) Caster Height 5.000” (127.00mm) Wheel Width 1.125” (28.00mm) Max Speed 2.5 mph
-
- Description
The 4 inches swivel stem caster with brake and a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place.
Use the F-BUS component when this caster is used with the EP-96-ST pipe.
Bolt M12 (12 mm) Length 2 1/4" (57.15 mm)
4 inches casters are made for:
- More or less long trips (30 to 50 feet)
- Frequent use (20 to 50 times a day)
- Carts weighting less than 400 pounds
- Narrow carts (between 16 and 24 in. wide)
W-4ESB has an electric conductivity version (ESD) : EW-4ESB
For more frequent use or longer trips, we recommend considering the W-6PSB caster.
For carts that will go outside, roll on ramps or damaged floors, it's preferable to use 6 inches casters.
All casters are equipped with a precision ball bearing.
A Flexpipe Product
-
