Quick Frame Snap On Panel Retainer
Quick Frame Snap On Panel Retainer
LENGTH: 72.5"

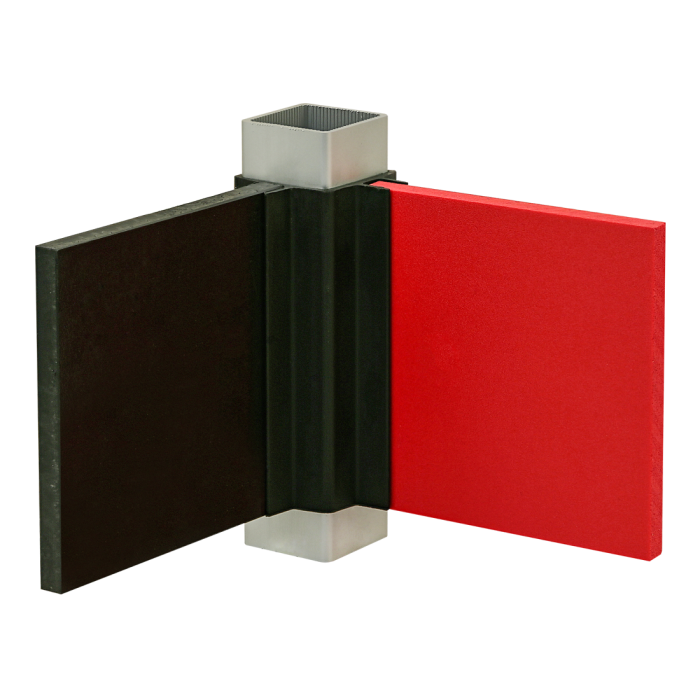

The snap on panel retainer snaps over the outside of square Quick Frame and 1010 profiles to hold .250" panels securely. It is commonly used in shelving and guarding applications. It comes in a stock length of 72.5 inches.
| ESD Safe | Yes |
| Series | Quick Frame |
| Material | Plastic |
| Process | Extruded |
| Finish | Matte |
| Color | Black |
| A | .177" |
| B | .370" |
| C | .070" |
| D | .250" |
| E | .527" |
| F | .350" |
| G | .984" |
| H | .107" |
| Weight | 0.868000 |
LENGTH: 72.5"
The snap on panel retainer snaps over the outside of square Quick Frame and 1010 profiles to hold .250" panels securely. It is commonly used in shelving and guarding applications. It comes in a stock length of 72.5 inches.
