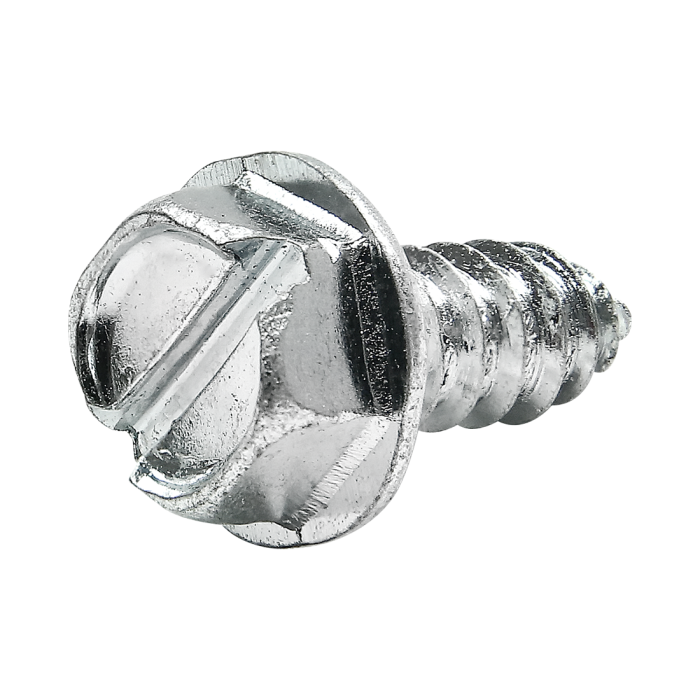

9306

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	.500"
    B	3/8
    C	.240"
    D (Length)	.625"
    E (Thread)	1/4-14
    Weight	0.010000
