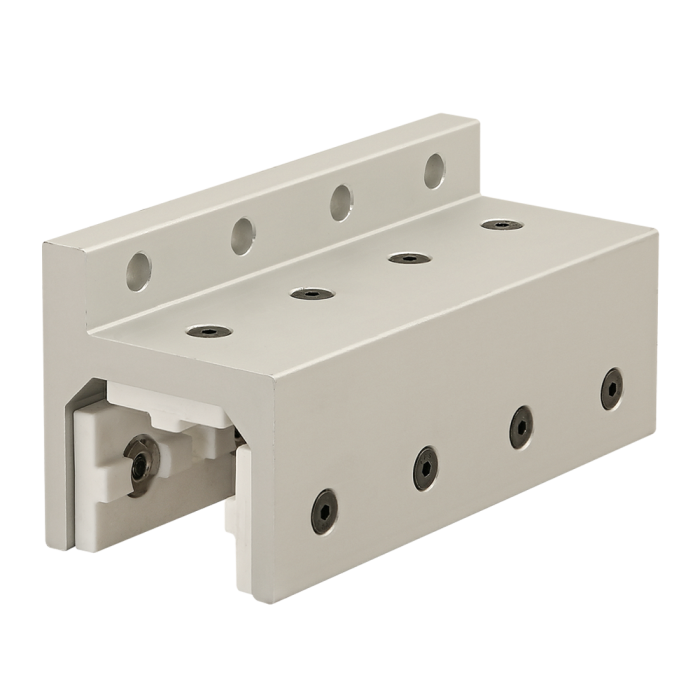

15 Series 3 Slot Mount - Single Flange Long High-Cycle Linear Bearing
15 Series 3 Slot Mount - Single Flange Long High-Cycle Linear Bearing
The 3-slot mount – single flange long high-cycle linear bearing without brake holes is typically used in linear motion applications. It contains special threaded inserts in the pads which provide a heavy-duty bearing capable of withstanding repetitive cycles with sudden acceleration and deceleration. The bearing houses profiles with a minimum of three open T-slots, has a single flange and is a longer option. The pads, screws and shims are included; the pads are made of self-lubricating UHMW. All 80/20 bearing are designed for compression loads only and not intended to support hanging loads.
The 3-slot mount – single flange long high-cycle linear bearing without brake holes is typically used in linear motion applications. It contains special threaded inserts in the pads which provide a heavy-duty bearing capable of withstanding repetitive cycles with sudden acceleration and deceleration. The bearing houses profiles with a minimum of three open T-slots, has a single flange and is a longer option. The pads, screws and shims are included; the pads are made of self-lubricating UHMW. All 80/20 bearing are designed for compression loads only and not intended to support hanging loads.
Total Price
................................................................................................................................| Series | 15 Series |
| Material | Aluminum |
| Process | Extruded |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| A | 2.750" |
| B | .750" |
| C | .375" |
| D | .125" |
| E | 2.505" |
| F | 2.005" |
| G | .493" |
| H | .250" |
| J | 2.000" |
| K | .500" |
| L | 6.000" |
| M | n/a |
| N | .750" |
| P | 1.253" |
| Q | 1.500" |
| R | 1.500" |
| S | 10-32 FHSCS |
| T | n/a |
| U | .328" |
| V | 1.500" |
| W | .656" |
| X | .375" |
| Y | .625" |
| Weight | 1.495000 |
The 3-slot mount – single flange long high-cycle linear bearing without brake holes is typically used in linear motion applications. It contains special threaded inserts in the pads which provide a heavy-duty bearing capable of withstanding repetitive cycles with sudden acceleration and deceleration. The bearing houses profiles with a minimum of three open T-slots, has a single flange and is a longer option. The pads, screws and shims are included; the pads are made of self-lubricating UHMW. All 80/20 bearing are designed for compression loads only and not intended to support hanging loads.
Product Specs
- Product Details
-
Series 15 Series Material Aluminum Process Extruded Grade 6063-T6 Finish Anodize Color Clear A 2.750" B .750" C .375" D .125" E 2.505" F 2.005" G .493" H .250" J 2.000" K .500" L 6.000" M n/a N .750" P 1.253" Q 1.500" R 1.500" S 10-32 FHSCS T n/a U .328" V 1.500" W .656" X .375" Y .625" Weight 1.495000
-
- Description
The 3-slot mount – single flange long high-cycle linear bearing without brake holes is typically used in linear motion applications. It contains special threaded inserts in the pads which provide a heavy-duty bearing capable of withstanding repetitive cycles with sudden acceleration and deceleration. The bearing houses profiles with a minimum of three open T-slots, has a single flange and is a longer option. The pads, screws and shims are included; the pads are made of self-lubricating UHMW. All 80/20 bearing are designed for compression loads only and not intended to support hanging loads.
-
