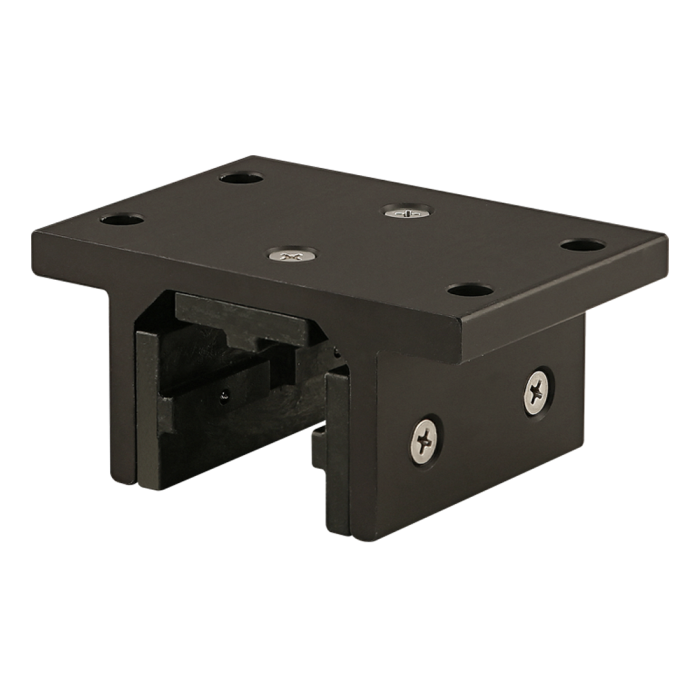

15 Series 3 Slot Mount - Double Flange Short Standard Linear Bearing
15 Series 3 Slot Mount - Double Flange Short Standard Linear Bearing
The 3-slot mount – double flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
The 3-slot mount – double flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Total Price
................................................................................................................................Series | 15 Series |
Material | Aluminum |
Grade | 6063-T6 |
Process | Extruded |
Finish | Anodize |
Color | Black |
A | 1.875" |
B | .375" |
C | 1.500" |
D | .125" |
E | 2.505" |
F | .250" |
G | 2.005" |
H | .493" |
J | .748" |
K | .250" |
L | 4.000" |
M | 2.812" |
N | n/a |
P | .656" |
Q | .375" |
R | 2.000" |
S | 1.500" |
T | #10 FHS |
U | n/a |
V | .328" |
W | 3.250" |
X | 1.500" |
Y | .656" |
Z | .625" |
Weight | 0.655000 |

The 3-slot mount – double flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Product Specs
- Product Details
-
Series 15 Series Material Aluminum Grade 6063-T6 Process Extruded Finish Anodize Color Black A 1.875" B .375" C 1.500" D .125" E 2.505" F .250" G 2.005" H .493" J .748" K .250" L 4.000" M 2.812" N n/a P .656" Q .375" R 2.000" S 1.500" T #10 FHS U n/a V .328" W 3.250" X 1.500" Y .656" Z .625" Weight 0.655000
-
- Description
The 3-slot mount – double flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
-
