6736-Black

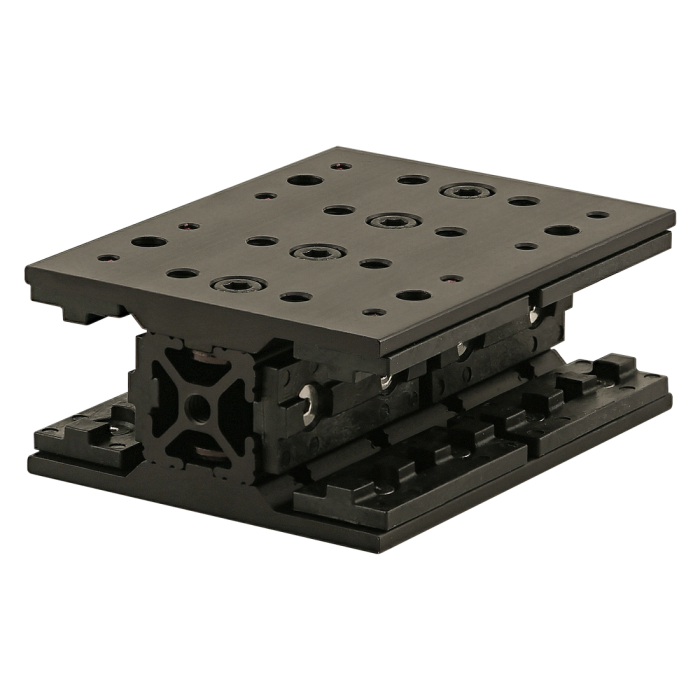

10 Series Long - Double Mount Unibearing™ Assembly
10 Series Long - Double Mount Unibearing™ Assembly
The long – double mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a long double mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.
This item requires a longer lead time. Please see Shipping Schedule for "Products Requiring Additional Anodizing".
The long – double mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a long double mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.
Total Price
................................................................................................................................| Series | 10 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Black |
| Process | Extruded |
| A | 1.624" |
| B | 4.000" |
| C | 3.125" |
| D | 1010 |
| Weight | 1.033000 |
The long – double mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a long double mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 | 3058 | 8 | 1/4-20 x .375" Socket Head Cap Screw (SHCS) |
| 3280 | 4 | 1/4-20 Double Slide-in Economy T-Nut |
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6063-T6 Finish Anodize Color Black Process Extruded A 1.624" B 4.000" C 3.125" D 1010 Weight 1.033000
-
- Description
The long – double mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a long double mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description 3058 8 1/4-20 x .375" Socket Head Cap Screw (SHCS)
3280 4 1/4-20 Double Slide-in Economy T-Nut
