6730

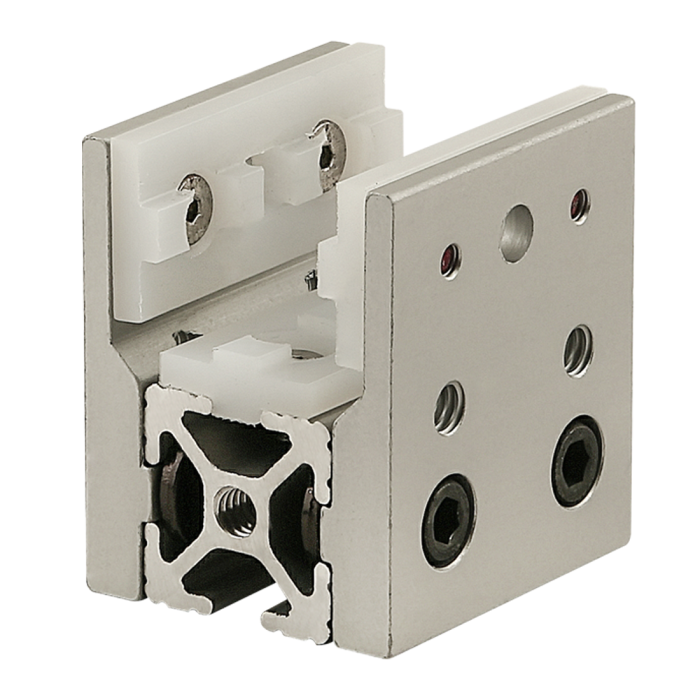

10 Series Short - Single Mount Unibearing™ Assembly
10 Series Short - Single Mount Unibearing™ Assembly
The short – single mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a short single mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.
....................................................................................................................................................................................................................................................
Total Price
$34.15| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Extruded |
| A | 2.063" |
| B | 1.875" |
| C | 1.624" |
| D | 1010 |
| Weight | 0.378000 |
The short – single mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a short single mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.
Mount to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3058 | 4 | 1/4-20 x .375" Socket Head Cap Screw (SHCS) | |
| 3280 | 2 | 1/4-20 Double Slide-in Economy T-Nut |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6105-T5 Finish Anodize Color Clear Process Extruded A 2.063" B 1.875" C 1.624" D 1010 Weight 0.378000
-
- Description
The short – single mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a short single mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.
-
Incl. Hardware
Mount to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 3058 4 1/4-20 x .375" Socket Head Cap Screw (SHCS)
3280 2 1/4-20 Double Slide-in Economy T-Nut
