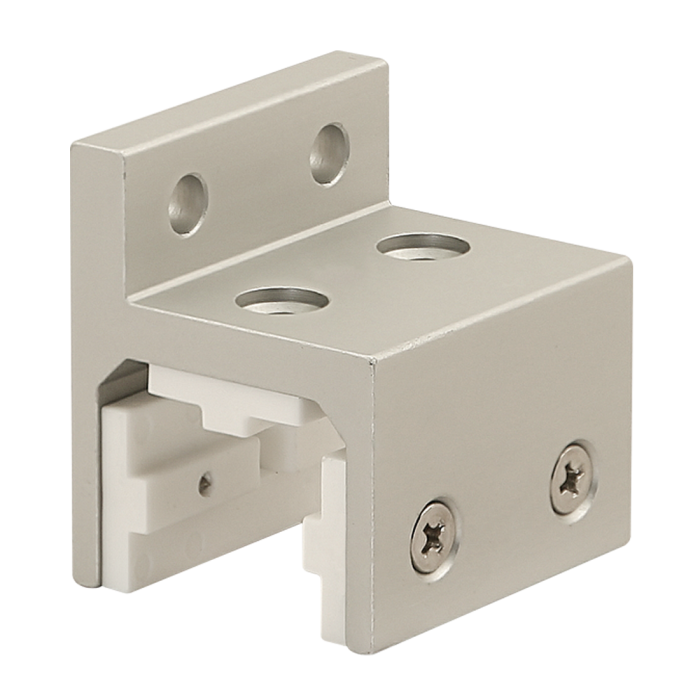

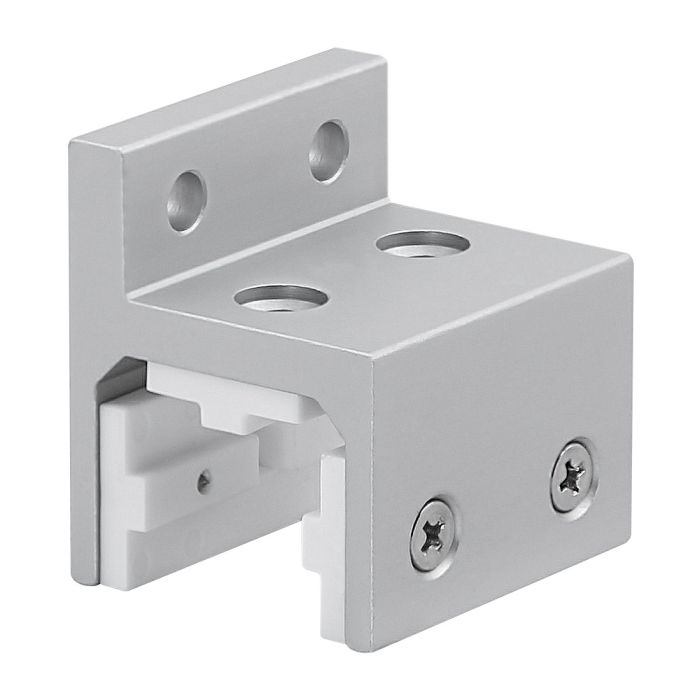

10 Series 3 Slot Mount - Single Flange Short Standard Linear Bearing
10 Series 3 Slot Mount - Single Flange Short Standard Linear Bearing
The 3-slot mount – single flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a single flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
The 3-slot mount – single flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a single flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
| ESD Safe | No |
| Series | 10 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Extruded |
| Finish | Anodize |
| Color | Clear |
| A | 1.968" |
| B | .656" |
| C | .250" |
| D | .094" |
| E | 1.624" |
| F | 1.312" |
| G | .306" |
| H | .156" |
| J | 1.312" |
| K | .311" |
| L | 1.875" |
| M | n/a |
| N | .438" |
| P | .812" |
| Q | 1.000" |
| R | #8 FHS |
| S | n/a |
| T | .257" |
| U | 1.000" |
| V | .438" |
| W | .343" |
| X | .406" |
| Weight | 0.198000 |
The 3-slot mount – single flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a single flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Product Specs
- Product Details
-
ESD Safe No Series 10 Series Material Aluminum Grade 6063-T6 Process Extruded Finish Anodize Color Clear A 1.968" B .656" C .250" D .094" E 1.624" F 1.312" G .306" H .156" J 1.312" K .311" L 1.875" M n/a N .438" P .812" Q 1.000" R #8 FHS S n/a T .257" U 1.000" V .438" W .343" X .406" Weight 0.198000
-
- Description
The 3-slot mount – single flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a single flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
-
