65-4487

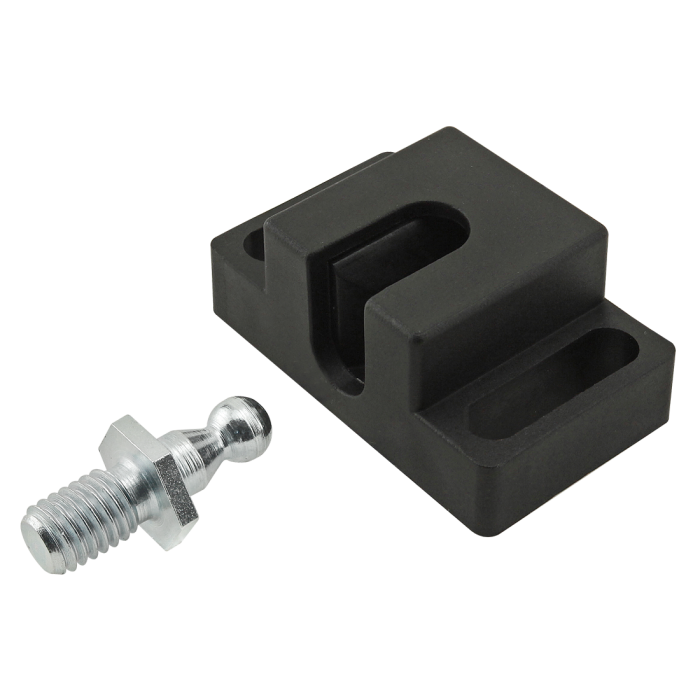

25, 30 & 40 Series Single Ball Catch
25, 30 & 40 Series Single Ball Catch
The single ball catch is comprised of a molded black fiberglass-reinforced nylon latch and a zinc-plated steel ball. It is a quick-latching method ideal for lightweight plastic panel doors. The steel ball can latch onto either the top or the front of the catch. The single ball catch requires a panel tap service to mount the steel ball to a plastic panel.
The single ball catch is comprised of a molded black fiberglass-reinforced nylon latch and a zinc-plated steel ball. It is a quick-latching method ideal for lightweight plastic panel doors. The steel ball can latch onto either the top or the front of the catch. The single ball catch requires a panel tap service to mount the steel ball to a plastic panel.
| ESD Safe | No |
| Series | 25 Series, 30 Series, 40 Series |
| Material | Nylon PA |
| Process | Injection Molded |
| Color | Black |
| A | 48.00mm |
| B | 37.00mm |
| C | 28.00mm |
| D | 16.00mm |
| E | 6.00mm |
| F | 13.00mm |
| G | 28.20mm |
| H | 2.20mm |
| J | M8 x 1.25 |
| K | 12.00mm |
| L | 20.00mm |
| M | 10.00mm |
| N | 25.00mm |
| P | 8.50mm |
| Weight | 0.062000 |
The single ball catch is comprised of a molded black fiberglass-reinforced nylon latch and a zinc-plated steel ball. It is a quick-latching method ideal for lightweight plastic panel doors. The steel ball can latch onto either the top or the front of the catch. The single ball catch requires a panel tap service to mount the steel ball to a plastic panel.
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 75-3522 | 2 | Bolt Assembly: M6 x 16.00mm Black SHCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
 | 75-3596 | 2 | Bolt Assembly: M6 x 18.00mm Black SHCS with Standard Drop-In T-Nut - Bright Zinc |
Product Specs
- Product Details
-
ESD Safe No Series 25 Series, 30 Series, 40 Series Material Nylon PA Process Injection Molded Color Black A 48.00mm B 37.00mm C 28.00mm D 16.00mm E 6.00mm F 13.00mm G 28.20mm H 2.20mm J M8 x 1.25 K 12.00mm L 20.00mm M 10.00mm N 25.00mm P 8.50mm Weight 0.062000
-
- Description
- The single ball catch is comprised of a molded black fiberglass-reinforced nylon latch and a zinc-plated steel ball. It is a quick-latching method ideal for lightweight plastic panel doors. The steel ball can latch onto either the top or the front of the catch. The single ball catch requires a panel tap service to mount the steel ball to a plastic panel.
