Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Black
    Type	SAE Flat
    Mfg Standard	ANSI B18.22.1

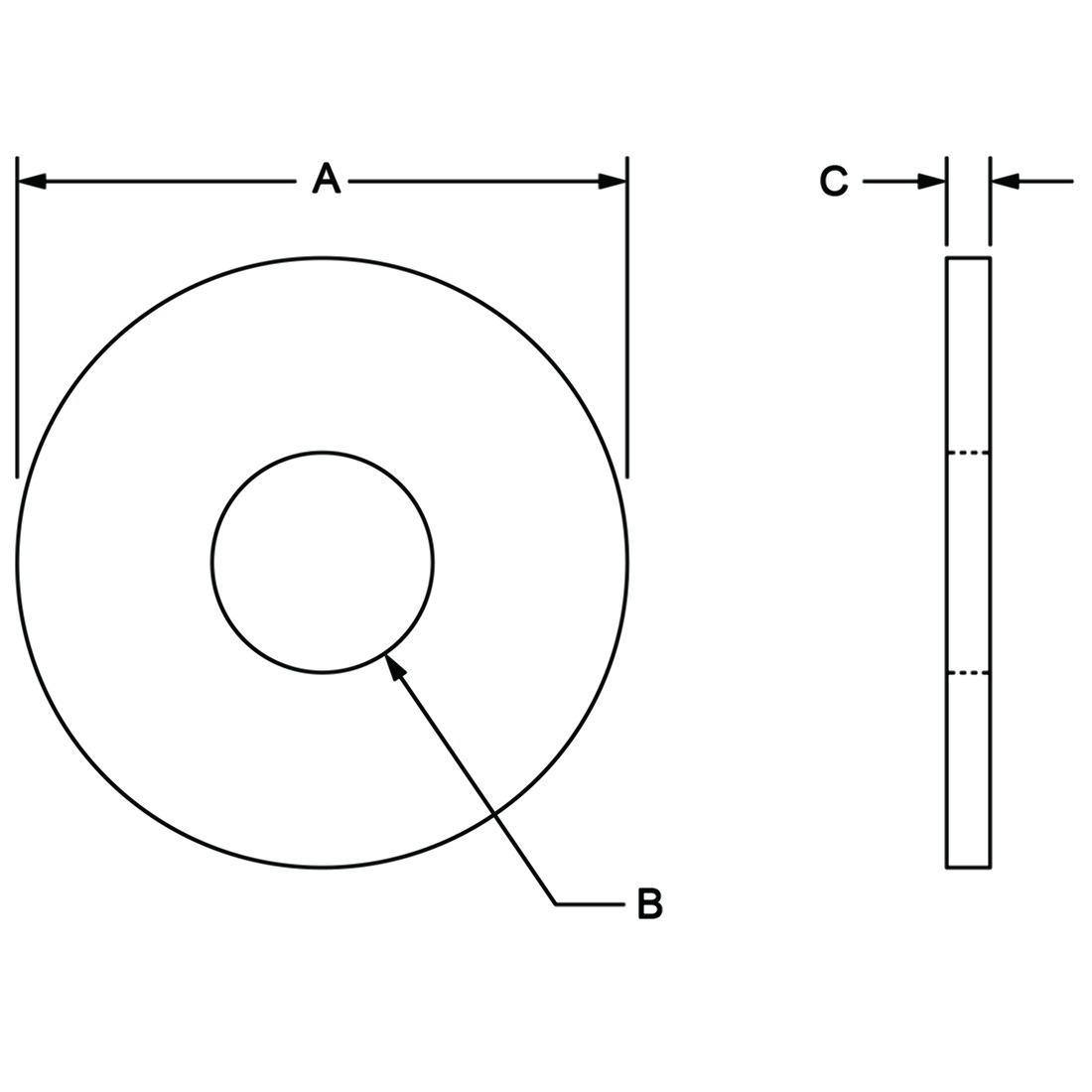

    A	16.00mm
    B	7.40mm
    C	1.52mm
    Weight	0.003000
