65-2202

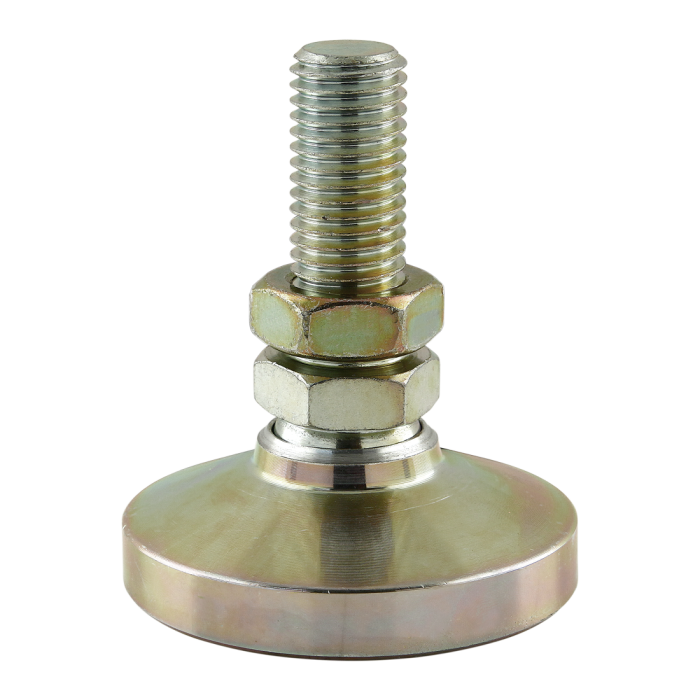

Deluxe Leveling Foot: M20 x 51.00mm
Deluxe Leveling Foot: M20 x 51.00mm
The deluxe leveling foot has a jam nut that allows it to pivot 20 degrees to accommodate uneven floors. There are options available with load capacities ranging from 1000-7400 pounds and 317-3357 kilograms. The deluxe leveling foot is a heavy-duty option ideal for large structures and commonly mounts to a profile with a base plate.
The deluxe leveling foot has a jam nut that allows it to pivot 20 degrees to accommodate uneven floors. There are options available with load capacities ranging from 1000-7400 pounds and 317-3357 kilograms. The deluxe leveling foot is a heavy-duty option ideal for large structures and commonly mounts to a profile with a base plate.
| ESD Safe | No |
| Series | Metric |
| Material | Steel |
| Grade | 12L14 |
| Process | Machined |
| Finish | Zinc |
| Color | Yellow |
| A | 76.00mm |
| B | 27.00mm |
| C | 51.00mm |
| D | 38.00mm |
| E | 10.00mm |
| F | M20 x 2.50 |
| Load Capacity | 3357.00 kg |
| Weight | 1.671000 |
The deluxe leveling foot has a jam nut that allows it to pivot 20 degrees to accommodate uneven floors. There are options available with load capacities ranging from 1000-7400 pounds and 317-3357 kilograms. The deluxe leveling foot is a heavy-duty option ideal for large structures and commonly mounts to a profile with a base plate.
Product Specs
- Product Details
-
ESD Safe No Series Metric Material Steel Grade 12L14 Process Machined Finish Zinc Color Yellow A 76.00mm B 27.00mm C 51.00mm D 38.00mm E 10.00mm F M20 x 2.50 Load Capacity 3357.00 kg Weight 1.671000
-
- Description
The deluxe leveling foot has a jam nut that allows it to pivot 20 degrees to accommodate uneven floors. There are options available with load capacities ranging from 1000-7400 pounds and 317-3357 kilograms. The deluxe leveling foot is a heavy-duty option ideal for large structures and commonly mounts to a profile with a base plate.
-
