65-2070

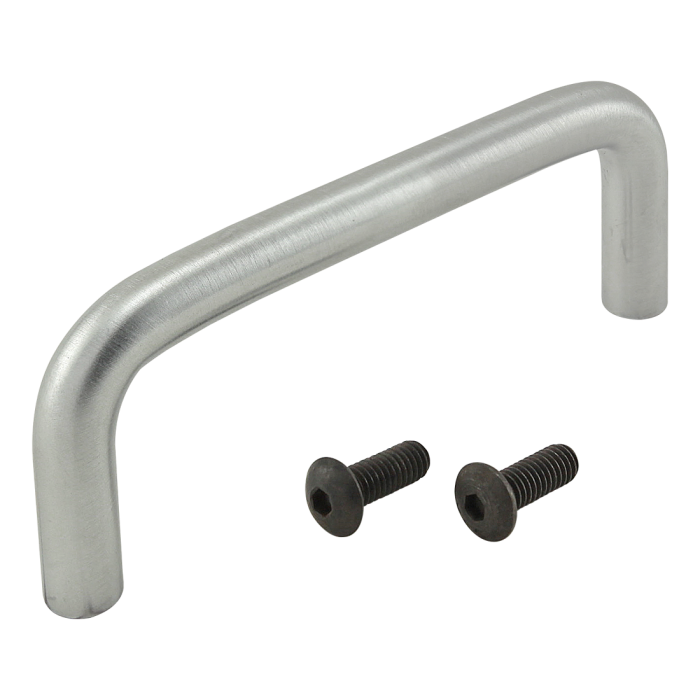

Steel Door Handle
Steel Door Handle
The steel door handle is compact and ideal for smaller areas. It is designed to bolt directly to plastic panels. The steel door handle requires a drill-through service for mounting to plastic panels. All of the required mounting hardware is included.
| ESD Safe | No |
| Series | Fractional, Metric |
| Material | Steel |
| Grade | Carbon |
| Finish | 26D Brushed |
| Color | Chrome |
| Process | Formed |
| A | 31.20mm |
| B | 84.00mm |
| C | 68.30mm |
| D | 8.00mm |
| E | 8-32 x .500 |
| Weight | 0.103600 |
The steel door handle is compact and ideal for smaller areas. It is designed to bolt directly to plastic panels. The steel door handle requires a drill-through service for mounting to plastic panels. All of the required mounting hardware is included.
Mount to Panel
| Series | Part Number | Qty | Description |
|---|---|---|---|
  | 3024 | 2 | 8-32 x .500" Button Head Socket Cap Screw (BHSCS) |
Product Specs
- Product Details
-
ESD Safe No Series Fractional, Metric Material Steel Grade Carbon Finish 26D Brushed Color Chrome Process Formed A 31.20mm B 84.00mm C 68.30mm D 8.00mm E 8-32 x .500 Weight 0.103600
-
- Description
The steel door handle is compact and ideal for smaller areas. It is designed to bolt directly to plastic panels. The steel door handle requires a drill-through service for mounting to plastic panels. All of the required mounting hardware is included.
-
Incl. Hardware
Mount to Panel
Series Part Number Qty Description 3024 2 8-32 x .500" Button Head Socket Cap Screw (BHSCS)
-
