65-2056

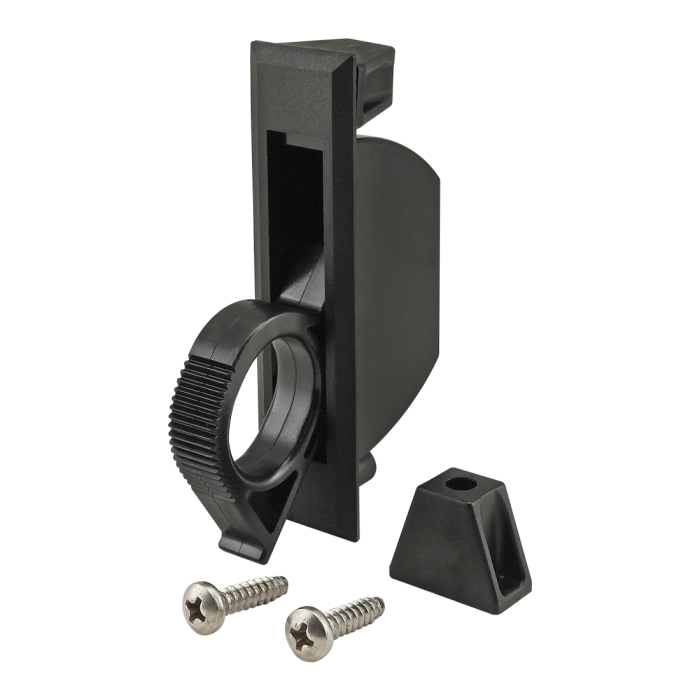

Flush Plastic Panel Handle
Flush Plastic Panel Handle
The flush plastic panel handle consists of a housing unit and a pull that together create a flush handle that doesn’t protrude, convenient for high-traffic areas. It provides an aesthetic appearance and mounts in panels .375" (10mm) or thinner and the mounting hardware is included. A flush handle panel milling service is required.
The flush plastic panel handle consists of a housing unit and a pull that together create a flush handle that doesn’t protrude, convenient for high-traffic areas. It provides an aesthetic appearance and mounts in panels .375" (10mm) or thinner and the mounting hardware is included. A flush handle panel milling service is required.
| ESD Safe | No |
| Series | Fractional, Metric |
| Material | Plastic |
| Grade | LNP™ Stat-Kon™ |
| Finish | Matte |
| Color | Black |
| A | 80.77mm |
| B | 19.05mm |
| C | 27.79mm |
| D | 14.22mm |
| E | 2.38mm |
| F | 10.40mm |
| G | 17.10mm |
| H | 20.60mm |
| J | 30° |
| Weight | 0.054000 |
The flush plastic panel handle consists of a housing unit and a pull that together create a flush handle that doesn’t protrude, convenient for high-traffic areas. It provides an aesthetic appearance and mounts in panels .375" (10mm) or thinner and the mounting hardware is included. A flush handle panel milling service is required.
Product Specs
- Product Details
-
ESD Safe No Series Fractional, Metric Material Plastic Grade LNP™ Stat-Kon™ Finish Matte Color Black A 80.77mm B 19.05mm C 27.79mm D 14.22mm E 2.38mm F 10.40mm G 17.10mm H 20.60mm J 30° Weight 0.054000
-
- Description
The flush plastic panel handle consists of a housing unit and a pull that together create a flush handle that doesn’t protrude, convenient for high-traffic areas. It provides an aesthetic appearance and mounts in panels .375" (10mm) or thinner and the mounting hardware is included. A flush handle panel milling service is required.
-
