6135

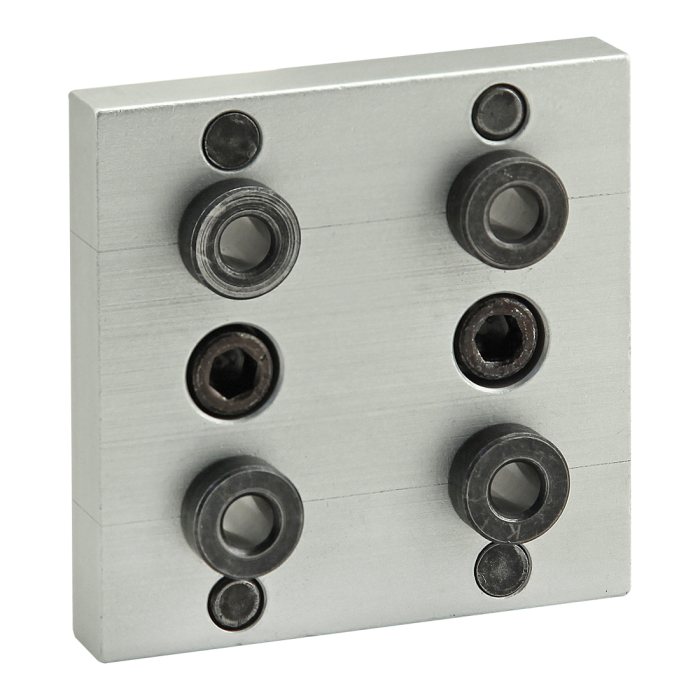

15 Series Access Hole Drill Jig for 3030 Profile
15 Series Access Hole Drill Jig for 3030 Profile
Jig for 3030 Profiles. Note: This part does not come with drill bit.
| ESD Safe | No |
| Series | 15 Series |
| Hole Size | .281” (7.1mm) |
| Weight | 0.655000 |
Jig for 3030 Profiles. Note: This part does not come with drill bit.
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.
Product Specs
- Product Details
-
ESD Safe No Series 15 Series Hole Size .281” (7.1mm) Weight 0.655000
-
- Description
- Jig for 3030 Profiles. Note: This part does not come with drill bit.
-
