10 Series 1" Wide Horizontal Stanchion Base
10 Series 1" Wide Horizontal Stanchion Base

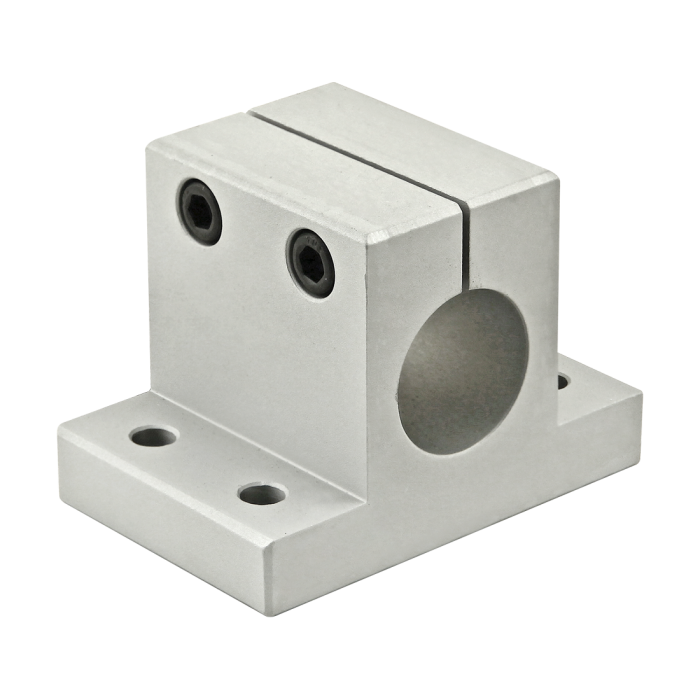

The wide horizontal stanchion base commonly used with the aluminum tube profile to create an additional axis. The tube extends parallel from both sides of the mounted base. It is a wider option, making it sturdy and durable. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
....................................................................................................................................................................................................................................................
Total Price
$47.20| Series | 10 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Process | Milled |
| A | 2.000" |
| B | 1.000" |
| C | .500" |
| D | 3.000" |
| E | .375" |
| F | 2.250" |
| G | .257" |
| H | .313" |
| J | .500" |
| K | 1.000" |
| L | 1/4-20 SHCS |
| M | 2.125" |
| N | .500" |
| P | 1.063" |
| Q | .750" |
| R | 1.004" |
| S | 1.500" |
| Weight | 0.604000 |
The wide horizontal stanchion base commonly used with the aluminum tube profile to create an additional axis. The tube extends parallel from both sides of the mounted base. It is a wider option, making it sturdy and durable. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
Stanchion to T-Slot
| Series | Part Number | Qty | Description | Select Qty / Add To Cart |
|---|---|---|---|---|
 | 3471 | 4 | Bolt Assembly: 1/4-20 x .875" Black SHCS with Washer and Slide-In Economy T-Nut - Centered Thread - Black Zinc |
** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartSolutions account below. If you do not have one, you will need to create a free account.
Product Specs
- Product Details
-
Series 10 Series Material Aluminum Grade 6105-T5 Finish Anodize Color Clear Process Milled A 2.000" B 1.000" C .500" D 3.000" E .375" F 2.250" G .257" H .313" J .500" K 1.000" L 1/4-20 SHCS M 2.125" N .500" P 1.063" Q .750" R 1.004" S 1.500" Weight 0.604000
-
- Description
The wide horizontal stanchion base commonly used with the aluminum tube profile to create an additional axis. The tube extends parallel from both sides of the mounted base. It is a wider option, making it sturdy and durable. Clamp screws are included. The suggested hardware to mount the base to a T-slot can be found on the "Suggested Hardware" tab.
-
Sugg. Hardware
Stanchion to T-Slot
Series Part Number Qty Description Select Qty / Add To Cart 3471 4 Bolt Assembly: 1/4-20 x .875" Black SHCS with Washer and Slide-In Economy T-Nut - Centered Thread - Black Zinc
